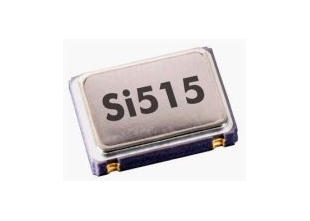

- 產品型號：30322486
- 晶振頻率：22.5792MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： 思佳訊差分晶振,遙遙領先的北斗衛星晶振,515CAA22M5792BAGR晶振，美國思佳訊晶振公司，Skyworks晶振，進口晶振，高品質晶振，歐美晶振，有源晶振，壓控晶振，石英貼片晶振，VCXO晶振，6G交換機晶振，六腳晶振，貼片晶...
-
思佳訊差分晶振,遙遙領先的北斗衛星晶振,515CAA22M5792BAGR晶振

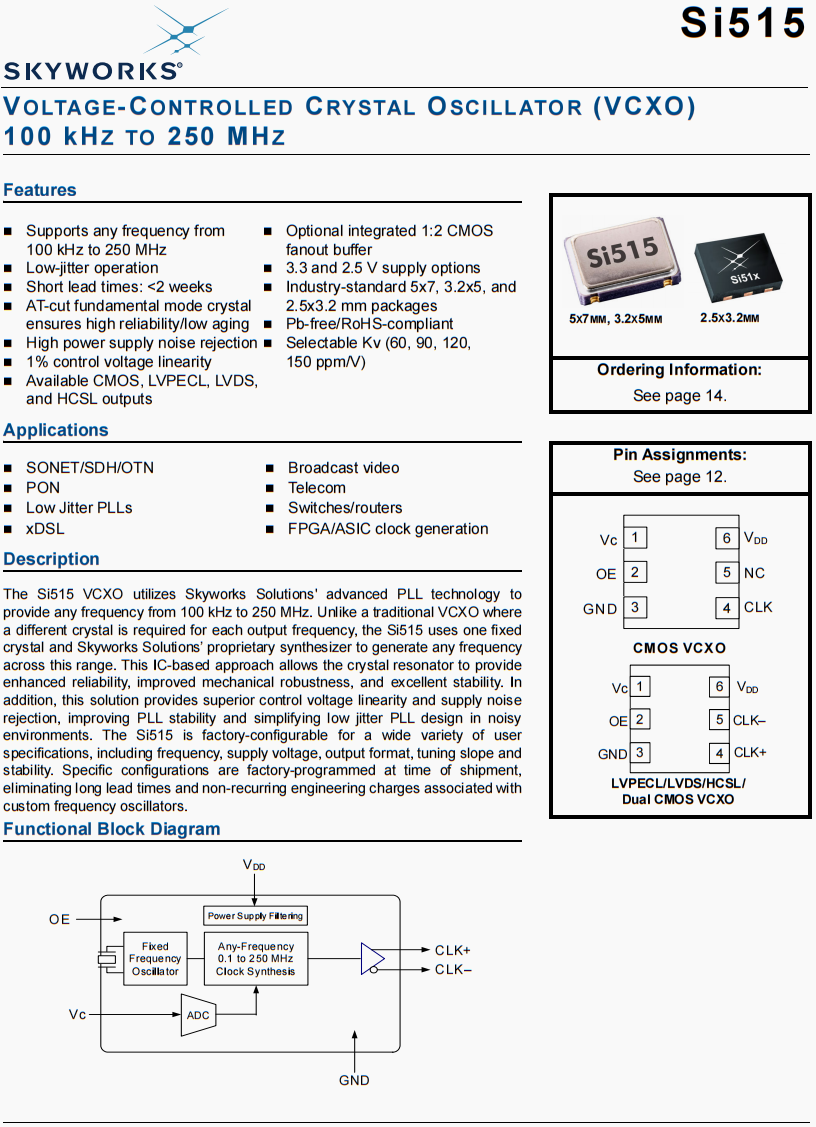

思佳訊差分晶振,遙遙領先的北斗衛星晶振,515CAA22M5792BAGR晶振，美國思佳訊晶振公司，Skyworks晶振，進口晶振，高品質晶振，歐美晶振，有源晶振，壓控晶振，石英貼片晶振，VCXO晶振，6G交換機晶振，六腳晶振，貼片晶振，石英晶振，7050晶振，支持從100 kHz到250 MHz的任何頻率低抖動工作前置時間短:<2周AT-cut基模晶體確保高可靠性/低老化高電源噪聲抑制1%控制電壓線性度CMOS, LVPECL, LVDS和HCSL輸出可選集成1:2 CMOS風扇輸出緩沖3.3和2.5 V電源選項工業標準5x7, 3.2x5和2.5x3.2 mm封裝無鉛/符合rohs可選Kv (60, 90, 120,150 ppm/V)
思佳訊差分晶振,遙遙領先的北斗衛星晶振,515CAA22M5792BAGR晶振
| 參數 | 標志 | 使用環境 | 最小值 | 典型的 | 最大值 | 單位 |
| 電源電壓 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V |
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||
| 供應電流 | IDD | CMOS, 100 MHz,single-ended | — | 24 | 29 | mA |
| LVDS(output enabled) | — | 22 | 26 | mA | ||
| LVPECL(output enabled) | — | 42 | 46 | mA | ||
| HCSL(output enabled) | — | 44 | 47 | mA | ||
| Tristate (output disabled) | — | — | 22 | mA | ||
| 工作溫度 | TA | –40 | — | 85 | oC | |
| 標稱頻率 | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz |
| FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | |
| 溫度穩定度 | ST | TA = –40 to +85 oC | –20 | — | +20 | ppm |
| 老化 | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm |
| 最小絕對拉力范圍 | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | ||
| 啟動時間 | TSU | Minimum VDD to output fre- quency (FO) within specification | — | — | 10 | ms |
| 禁用時間 | TD | FO ? 10 MHz | — | — | 5 | µs |
| FO < 10 MHz | 40 | µs | ||||
| 啟用時間 | TE | FO ? 10 MHz | — | — | 20 | µs |
| FO < 10 MHz | 60 | µs | ||||
.jpg)
思佳訊差分晶振,遙遙領先的北斗衛星晶振,515CAA22M5792BAGR晶振
.png)
.png)
| Skywork原廠編碼 | 生產商 | 型號 | 類型 | 頻率 | 輸出 | 電源電壓 |
| 515CAAM100000AAGR | Skyworks晶振 | Si515 | VCXO | 100 kHz | CMOS | 3.3V |
| 515CAB32M7680AAGR | Skyworks晶振 | Si515 | VCXO | 32.768 MHz | CMOS | 3.3V |
| 515CBA4M09600AAGR | Skyworks晶振 | Si515 | VCXO | 4.096 MHz | CMOS | 3.3V |
| 515CDA8M00000AAGR | Skyworks晶振 | Si515 | VCXO | 8 MHz | CMOS | 3.3V |
| 515GCA10M0000AAGR | Skyworks晶振 | Si515 | VCXO | 10 MHz | CMOS | 2.5V |
| 515CAA10M0000BAGR | Skyworks晶振 | Si515 | VCXO | 10 MHz | CMOS | 3.3V |
| 515CAA22M5792BAGR | Skyworks晶振 | Si515 | VCXO | 22.5792 MHz | CMOS | 3.3V |
| 515CAA24M5760BAGR | Skyworks晶振 | Si515 | VCXO | 24.576 MHz | CMOS | 3.3V |
| 515CAA27M0000BAGR | Skyworks晶振 | Si515 | VCXO | 27 MHz | CMOS | 3.3V |
| 515CAA4M09600BAGR | Skyworks晶振 | Si515 | VCXO | 4.096 MHz | CMOS | 3.3V |
| 515CAA7M37472BAGR | Skyworks晶振 | Si515 | VCXO | 7.37472 MHz | CMOS | 3.3V |
| 515CAA80M0000BAGR | Skyworks晶振 | Si515 | VCXO | 80 MHz | CMOS | 3.3V |
| 515CAAM172162BAGR | Skyworks晶振 | Si515 | VCXO | 172.162 kHz | CMOS | 3.3V |
| 515CAB27M0000BAGR | Skyworks晶振 | Si515 | VCXO | 27 MHz | CMOS | 3.3V |
| 515CAB4M09600BAGR | Skyworks晶振 | Si515 | VCXO | 4.096 MHz | CMOS | 3.3V |
| 515CAB5M00000BAGR | Skyworks晶振 | Si515 | VCXO | 5 MHz | CMOS | 3.3V |
| 515CBA24M0000BAGR | Skyworks晶振 | Si515 | VCXO | 24 MHz | CMOS | 3.3V |
| 515CBA36M8640BAGR | Skyworks晶振 | Si515 | VCXO | 36.864 MHz | CMOS | 3.3V |
| 515CBA38M4000BAGR | Skyworks晶振 | Si515 | VCXO | 38.4 MHz | CMOS | 3.3V |
| 515CBA80M0000BAGR | Skyworks晶振 | Si515 | VCXO | 80 MHz | CMOS | 3.3V |
| 515CBB14M3182BAGR | Skyworks晶振 | Si515 | VCXO | 14.3182 MHz | CMOS | 3.3V |
| 515CBB27M0000BAGR | Skyworks晶振 | Si515 | VCXO | 27 MHz | CMOS | 3.3V |
| 515CBB6M00000BAGR | Skyworks晶振 | Si515 | VCXO | 6 MHz | CMOS | 3.3V |
| 515CCA10M0000BAGR | Skyworks晶振 | Si515 | VCXO | 10 MHz | CMOS | 3.3V |
| 515CCA122M880BAGR | Skyworks晶振 | Si515 | VCXO | 122.88 MHz | CMOS | 3.3V |
| 515CCA40M0000BAGR | Skyworks晶振 | Si515 | VCXO | 40 MHz | CMOS | 3.3V |
| 515CCA61M4400BAGR | Skyworks晶振 | Si515 | VCXO | 61.44 MHz | CMOS | 3.3V |
| 515CCA64M0000BAGR | Skyworks晶振 | Si515 | VCXO | 64 MHz | CMOS | 3.3V |
| 515CCB122M880BAGR | Skyworks晶振 | Si515 | VCXO | 122.88 MHz | CMOS | 3.3V |
| 515CCB14M3182BAGR | Skyworks晶振 | Si515 | VCXO | 14.3182 MHz | CMOS | 3.3V |
| 515CCB16M3840BAGR | Skyworks晶振 | Si515 | VCXO | 16.384 MHz | CMOS | 3.3V |
| 515CCB25M0000BAGR | Skyworks晶振 | Si515 | VCXO | 25 MHz | CMOS | 3.3V |
| 515CDA10M0000BAGR | Skyworks晶振 | Si515 | VCXO | 10 MHz | CMOS | 3.3V |
| 515CDA27M0000BAGR | Skyworks晶振 | Si515 | VCXO | 27 MHz | CMOS | 3.3V |
| 515CDA32M7680BAGR | Skyworks晶振 | Si515 | VCXO | 32.768 MHz | CMOS | 3.3V |
| 515CDAM134200BAGR | Skyworks晶振 | Si515 | VCXO | 1.342 kHz | CMOS | 3.3V |
| 515CDB25M0000BAGR | Skyworks晶振 | Si515 | VCXO | 25 MHz | CMOS | 3.3V |
| 515CDB6M00000BAGR | Skyworks晶振 | Si515 | VCXO | 6 MHz | CMOS | 3.3V |
| 515GAA25M0000BAGR | Skyworks晶振 | Si515 | VCXO | 25 MHz | CMOS | 2.5V |
| 515MDA17M1776BAGR | Skyworks晶振 | Si515 | VCXO | 17.1776 MHz | CMOS | 3.3V |
| 515NDAM134200BAGR | Skyworks晶振 | Si515 | VCXO | 134.2 kHz | CMOS | 3.3V |
| 515CAA12M2870BAGR | Skyworks晶振 | Si515 | VCXO | 12.287 MHz | CMOS | 3.3V |
| 515CAA12M2880BAGR | Skyworks晶振 | Si515 | VCXO | 12.287 MHz | CMOS | 3.3V |
| 515CAA98M3040BAGR | Skyworks晶振 | Si515 | VCXO | 98.3 MHz | CMOS | 3.3V |
| 515CCA50M0000BAGR | Skyworks晶振 | Si515 | VCXO | 50 MHz | CMOS | 3.3V |
| 515CAA000282CAGR | Skyworks晶振 | Si515 | VCXO | 14.31818 MHz | CMOS | 3.3V |
| 515CDA51M2000BAGR | Skyworks晶振 | Si515 | VCXO | 51.2 MHz | CMOS | 3.3V |
| 515CAA16M7770CAGR | Skyworks晶振 | Si515 | VCXO | 16.777 MHz | CMOS | 3.3V |
| 515GAA54M0000CAGR | Skyworks晶振 | Si515 | VCXO | 54 MHz | CMOS | 2.5V |
| 515CAA16M0000BAGR | Skyworks晶振 | Si515 | VCXO | 16 MHz | CMOS | 3.3V |
| 515CBA32M7680CAGR | Skyworks晶振 | Si515 | VCXO | 32.768 MHz | CMOS | 3.3V |
| 515CAA12M2880CAGR | Skyworks晶振 | Si515 | VCXO | 12.288 MHz | CMOS | 3.3V |
| 515CBA27M0000CAGR | Skyworks晶振 | Si515 | VCXO | 27 MHz | CMOS | 3.3V |
| 515GAA54M0000BAGR | Skyworks晶振 | Si515 | VCXO | 54 MHz | CMOS | 2.5V |
| 515GCA27M0000CAGR | Skyworks晶振 | Si515 | VCXO | 27 MHz | CMOS | 2.5V |
| 515GCA10M0000CAGR | Skyworks晶振 | Si515 | VCXO | 10 MHz | CMOS | 2.5V |
| 515CAA004711CAGR | Skyworks晶振 | Si515 | VCXO | 16.777215 MHz | CMOS | 3.3V |
| 515CBA96M0000BAGR | Skyworks晶振 | Si515 | VCXO | 96 MHz | CMOS | 3.3V |
| 515CCA12M8000CAGR | Skyworks晶振 | Si515 | VCXO | 12.8 MHz | CMOS | 3.3V |
