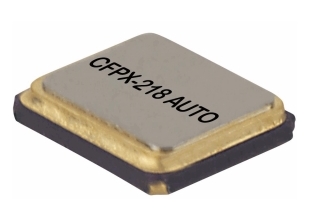

首頁歐美晶振LFXTAL071269REEL|Resonator Crystal

LFXTAL071269REEL|Resonator Crystal

產品型號：2419012

晶振頻率：24.576MHz

晶振頻率：24.576MHz

產品應用： IQD晶振,CFPX-218無源晶振,LFXTAL071269REEL晶振,石英晶體諧振器,2520貼片晶振,進口石英晶振,SMD晶體,頻率24.576MHz,負載10pF,頻率容差10ppm,工作溫度-40~125°C,耐高溫晶振,抗沖擊晶振,輕薄小晶振,信息娛樂系統晶振,...

LFXTAL071269REEL|Resonator Crystal,IQD晶振,CFPX-218無源晶振,LFXTAL071269REEL晶振,石英晶體諧振器,2520貼片晶振,進口石英晶振,SMD晶體,頻率24.576MHz,負載10pF,頻率容差10ppm,工作溫度-40~125°C,耐高溫晶振,抗沖擊晶振,輕薄小晶振,信息娛樂系統晶振,高級駕駛輔助系統晶振,GPS導航晶振,汽車音響控制器晶振.

LFXTAL071269REEL|Resonator Crystal特點：

-標準的2.5 x 2mm SMD晶體在密封陶瓷封裝與接縫密封金屬蓋

-有關低老化版本，請參閱我們的CFPX-181
-適用于汽車應用，通過AEC-Q200認證，并通過IATF-16949:2016
-不適合安全關鍵應用。

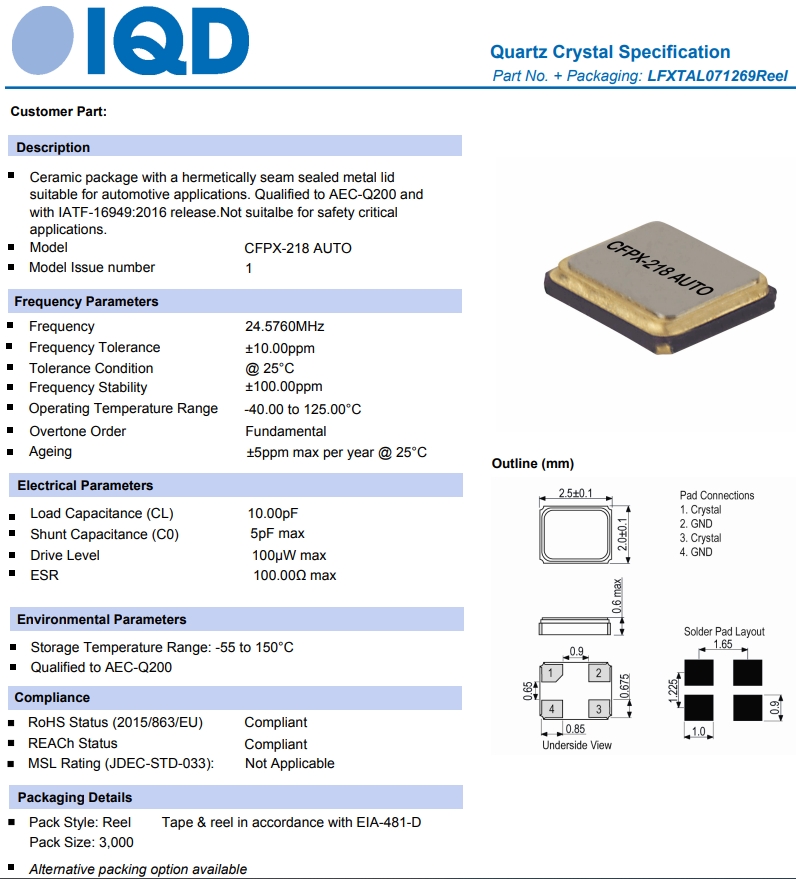

LFXTAL071269REEL|Resonator Crystal規格表

Model Product

CFPX-218

frequency 24.576MHz

Frequency Tolerance ±10.00ppm

Tolerance Condition

@ 25°C

Frequency Stability
±100.00ppm

operating temperature range -40 to +125°C

Ageing
±5ppm max per year@25°C

Load Capacitance 10pF

Shunt Capacitance 5pF max

Drive Level 100µW max

ESR 100Ω max

Storage Temperature Range

-55 to 150°C

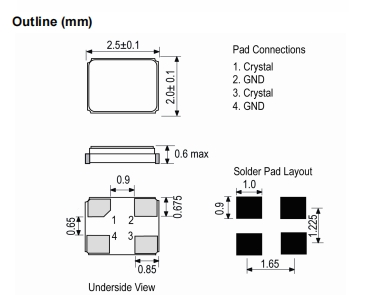

LFXTAL071269REEL|Resonator Crystal尺寸圖

Mfr Part Series Frequency Frequency Tolerance Load Capacitance Operating Temperature

LFXTAL003000 85SMX 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL069395RL3K CFPX-218 16.384 MHz ±20ppm 10pF -40°C ~ 85°C

LFXTAL009678 CFPX-217 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL050789REEL IQXC-25 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL055299REEL CFPX-180 25 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL053099REEL CFPX-180 27.12 MHz ±10ppm 10pF -20°C ~ 70°C

LFXTAL055663REEL CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL026392REEL 12SMX-B 16 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL011301REEL HC49/4HSMX 8 MHz ±30ppm 30pF -10°C ~ 60°C

LFXTAL029370REEL HC49/4HSMX 16 MHz ±30ppm 18pF -20°C ~ 70°C

LFXTAL016788REEL HC49/4HSMX 6 MHz ±30ppm 30pF -10°C ~ 60°C

LFXTAL002995BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL002997BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL002996BULK WATCH 32.768 kHz ±15ppm 12.5pF -40°C ~ 85°C

LFXTAL025159REEL CFPX-56 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL003181REEL HC49/4HSMX 20 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL003166REEL HC49/4HSMX 10 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL029914REEL HC49/4HSMX 8 MHz ±30ppm 16pF -40°C ~ 85°C

LFXTAL003151REEL HC49/4HSMX 8 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL003237REEL HC49/4HSMX 16 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL014219BULK WATCH 32.768 kHz ±20ppm 6pF -40°C ~ 85°C

LFXTAL069494REEL IQXC-42 25 MHz ±15ppm 10pF -40°C ~ 85°C

LFXTAL069383REEL CFPX-218 24 MHz ±20ppm 10pF -40°C ~ 85°C

LFXTAL035264REEL CFPX-180 16 MHz ±50ppm 16pF -10°C ~ 60°C

LFXTAL069944REEL CFPX-180 12 MHz ±20ppm 15pF -40°C ~ 85°C

LFXTAL035268REEL CFPX-180 25 MHz ±50ppm 16pF -10°C ~ 60°C

LFXTAL056140REEL IQXC-180 AUTO 24 MHz ±50ppm 8pF -40°C ~ 125°C

LFXTAL069526REEL IQXC-26 32 MHz ±15ppm 8pF -20°C ~ 70°C

LFXTAL084885 IQXC-217 32.768 kHz ±20ppm 6pF -

LFXTAL036075BULK HC49/4H 27.12 MHz ±30ppm 10pF -10°C ~ 60°C

LFXTAL027945BULK HC49/4H 16 MHz ±30ppm 22pF -10°C ~ 60°C

LFXTAL071268REEL CFPX-218 AUTO 16 MHz ±10ppm 10pF -40°C ~ 125°C

LFXTAL061627REEL CFPX-104 8 MHz ±20ppm 16pF -40°C ~ 85°C

LFXTAL055901REEL CFPX-104 8 MHz ±20ppm 18pF -20°C ~ 70°C

LFXTAL059158REEL CFPX-104 8 MHz ±30ppm 16pF -40°C ~ 85°C

LFXTAL062558REEL IQXC-25 32.768 kHz ±10ppm 9pF -40°C ~ 85°C

LFXTAL026384REEL 12SMX-B 12 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL026394REEL 12SMX-B 20 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL056516REEL 12SMX-B 8 MHz ±30ppm 12pF -20°C ~ 70°C

LFXTAL026380REEL 12SMX-B 8 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL055663BULK CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL003033BULK HC49 1.8432 MHz ±20ppm 30pF -10°C ~ 60°C

LFXTAL020423REEL HC49/4HSMX 8 MHz ±30ppm 18pF -20°C ~ 70°C

LFXTAL024940REEL HC49/4HSMX 4 MHz ±30ppm 18pF -20°C ~ 70°C

LFXTAL026900REEL HC49/4HSMX 6 MHz ±20ppm 16pF -10°C ~ 60°C

LFXTAL030798REEL HC49/4HSMX 3.6864 MHz ±30ppm 16pF -40°C ~ 85°C

LFXTAL082071RL3K CFPX-180 16 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL082069RL3K CFPX-180 12 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL058637RL3K CFPX-180 25 MHz ±30ppm 12pF -40°C ~ 85°C

LFXTAL059627REEL IQXC-42 38.4 MHz ±15ppm 10pF -40°C ~ 85°C

LFXTAL082135CUTT IQXC-42 48 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL063334REEL CFPX-218 25 MHz ±20ppm 10pF -40°C ~ 85°C

LFXTAL055474REEL CFPX-180 25 MHz ±50ppm 16pF -40°C ~ 85°C

LFXTAL059648REEL CFPX-180 40 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL072604REEL CFPX-180 25 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL069882REEL CFPX-180 12 MHz ±30ppm 10pF -40°C ~ 125°C

LFXTAL070065REEL CFPX-180 24 MHz ±10ppm 9pF -40°C ~ 85°C

LFXTAL055293REEL CFPX-180 14.7456 MHz ±50ppm 18pF -40°C ~ 85°C

LFXTAL009650REEL CFPX-180 16 MHz ±10ppm 16pF -40°C ~ 85°C

相關產品

Model		Product
		CFPX-218
frequency		24.576MHz
Frequency Tolerance		±10.00ppm
Tolerance Condition		@ 25°C
Frequency Stability		±100.00ppm
operating temperature range		-40 to +125°C
Ageing		±5ppm max per year@25°C
Load Capacitance		10pF
Shunt Capacitance		5pF max
Drive Level		100µW max
ESR		100Ω max
Storage Temperature Range		-55 to 150°C

Mfr Part	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL003000	85SMX	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069395RL3K	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL009678	CFPX-217	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL050789REEL	IQXC-25	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL055299REEL	CFPX-180	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL053099REEL	CFPX-180	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL055663REEL	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL026392REEL	12SMX-B	16 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL011301REEL	HC49/4HSMX	8 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL029370REEL	HC49/4HSMX	16 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL016788REEL	HC49/4HSMX	6 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL002995BULK	WATCH	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL002997BULK	WATCH	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL002996BULK	WATCH	32.768 kHz	±15ppm	12.5pF	-40°C ~ 85°C
LFXTAL025159REEL	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL003181REEL	HC49/4HSMX	20 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003166REEL	HC49/4HSMX	10 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL029914REEL	HC49/4HSMX	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL003151REEL	HC49/4HSMX	8 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003237REEL	HC49/4HSMX	16 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL014219BULK	WATCH	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
LFXTAL069494REEL	IQXC-42	25 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL069383REEL	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL035264REEL	CFPX-180	16 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL069944REEL	CFPX-180	12 MHz	±20ppm	15pF	-40°C ~ 85°C
LFXTAL035268REEL	CFPX-180	25 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL056140REEL	IQXC-180 AUTO	24 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL069526REEL	IQXC-26	32 MHz	±15ppm	8pF	-20°C ~ 70°C
LFXTAL084885	IQXC-217	32.768 kHz	±20ppm	6pF	-
LFXTAL036075BULK	HC49/4H	27.12 MHz	±30ppm	10pF	-10°C ~ 60°C
LFXTAL027945BULK	HC49/4H	16 MHz	±30ppm	22pF	-10°C ~ 60°C
LFXTAL071268REEL	CFPX-218 AUTO	16 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL061627REEL	CFPX-104	8 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055901REEL	CFPX-104	8 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL059158REEL	CFPX-104	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL062558REEL	IQXC-25	32.768 kHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL026384REEL	12SMX-B	12 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL026394REEL	12SMX-B	20 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL056516REEL	12SMX-B	8 MHz	±30ppm	12pF	-20°C ~ 70°C
LFXTAL026380REEL	12SMX-B	8 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL055663BULK	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL003033BULK	HC49	1.8432 MHz	±20ppm	30pF	-10°C ~ 60°C
LFXTAL020423REEL	HC49/4HSMX	8 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL024940REEL	HC49/4HSMX	4 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL026900REEL	HC49/4HSMX	6 MHz	±20ppm	16pF	-10°C ~ 60°C
LFXTAL030798REEL	HC49/4HSMX	3.6864 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL082071RL3K	CFPX-180	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL082069RL3K	CFPX-180	12 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL058637RL3K	CFPX-180	25 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL059627REEL	IQXC-42	38.4 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL082135CUTT	IQXC-42	48 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL063334REEL	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL055474REEL	CFPX-180	25 MHz	±50ppm	16pF	-40°C ~ 85°C
LFXTAL059648REEL	CFPX-180	40 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL072604REEL	CFPX-180	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069882REEL	CFPX-180	12 MHz	±30ppm	10pF	-40°C ~ 125°C
LFXTAL070065REEL	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL055293REEL	CFPX-180	14.7456 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL009650REEL	CFPX-180	16 MHz	±10ppm	16pF	-40°C ~ 85°C
