首頁進口晶振Hosonic Crystal|E3SB24E00004XE

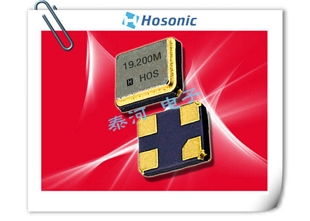

Hosonic Crystal|E3SB24E00004XE

產品型號：60625606

晶振頻率：24MHz

晶振尺寸：3.2*2.5*0.9mm

產品應用： 臺灣鴻星晶振,Hosonic Crystal,E3SB無源晶振,E3SB24E00004XE晶振,石英晶體諧振器,SMD晶體,3225封裝晶振,頻率24MHz,負載16pF,頻率穩定性10ppm,工作溫度-30~85°C,無鉛環保晶振,高精度晶振,輕薄小晶振,可穿戴設備晶振,D...

Hosonic Crystal|E3SB24E00004XE,臺灣鴻星晶振,Hosonic Crystal,E3SB無源晶振,E3SB24E00004XE晶振,石英晶體諧振器,SMD晶體,3225封裝晶振,頻率24MHz,負載16pF,頻率穩定性10ppm,工作溫度-30~85°C,無鉛環保晶振,高精度晶振,輕薄小晶振,可穿戴設備晶振,DVD家電影音系統晶振,移動應用晶振,電信交換機晶振.

Hosonic Crystal|E3SB24E00004XE特點：
-非常緊湊和薄(3.2*2.5*0.75mm max.)

-優異的電氣性能，辦公自動化，AV(視聽)，藍牙和無線局域網應用的理想選擇

-優異的抗震性和耐熱性

-無鉛。滿足使用無鉛焊料的回流剖面要求

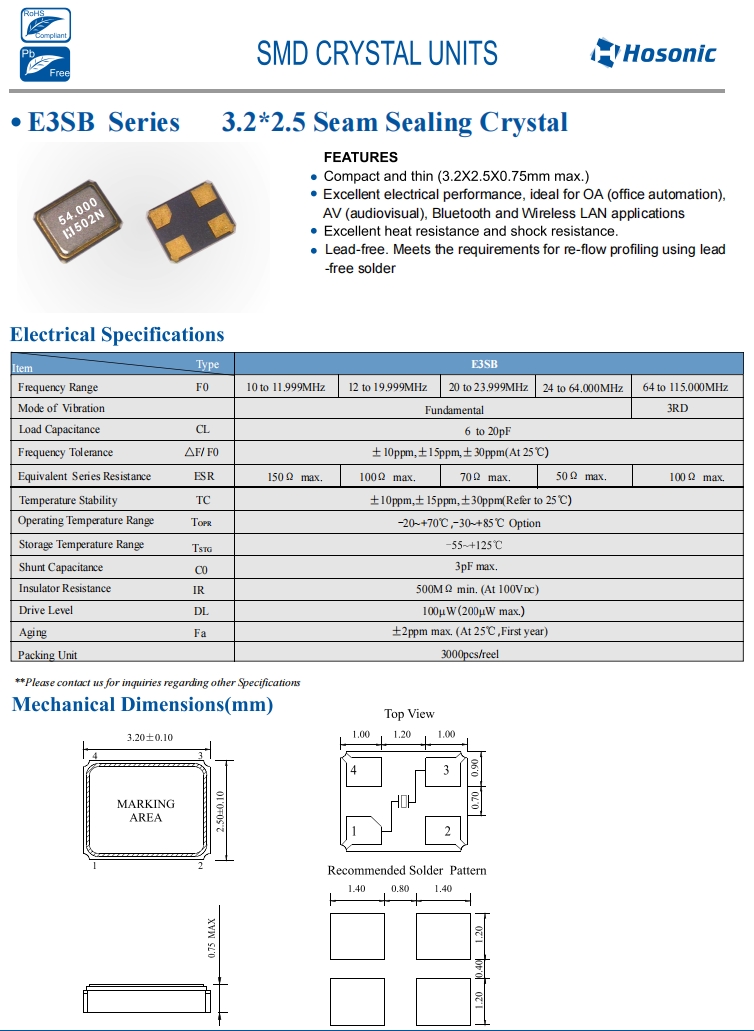

Hosonic Crystal|E3SB24E00004XE規格表

Item   Type E3SB

Frequency Range   F0 24 MHz

Mode of Vibration

Fundamental

Load Capacitance   CL 16 pF

Frequency Tolerance ΔF/ F0 ±10ppm (At 25℃)

Equivalent  Series Resistance ESR 50 Ω max.

Temperature Stability
TC
±10ppm (Refer to 25℃)

Operating Temperature Range TOPR -30~+85℃

Storage Temperature Range TSTG -55~+125℃

Shunt Capacitance C0 3pF max.

Insulator Resistance IR 500MΩ min. (At 100VDC)

Drive Level DL 100 μW (200 μW max.）

Aging Fa ±2ppm max. (At 25℃,First year)

Packing Unit 3000pcs/reel

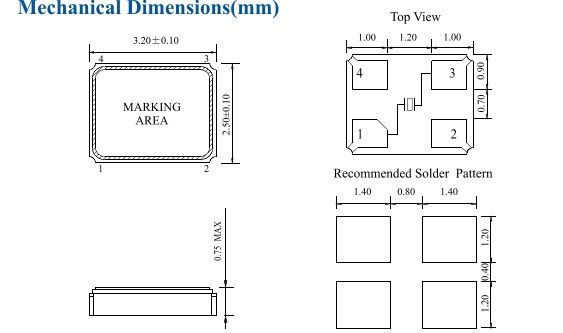

Hosonic Crystal|E3SB24E00004XE尺寸圖

原廠編碼制造廠家型號頻率負載電容頻率容差頻率穩定度

E3FB16.0000F18E33 Hosonic晶振 E3FB 16MHz 18pF ±30ppm ±30ppm

E3FB17.0000F18E33 Hosonic晶振 E3FB 17MHz 18pF ±30ppm ±30ppm

E3FB18.0000F18E33 Hosonic晶振 E3FB 18MHz 18pF ±30ppm ±30ppm

E3FB19.0000F18E33 Hosonic晶振 E3FB 19MHz 18pF ±30ppm ±30ppm

E3FB20.0000F18E33 Hosonic晶振 E3FB 20MHz 18pF ±30ppm ±30ppm

E3FB21.0000F18E33 Hosonic晶振 E3FB 21MHz 18pF ±30ppm ±30ppm

E3FB22.0000F18E33 Hosonic晶振 E3FB 22MHz 18pF ±30ppm ±30ppm

E3FB23.0000F18E33 Hosonic晶振 E3FB 23MHz 18pF ±30ppm ±30ppm

E3FB24.0000F18E33 Hosonic晶振 E3FB 24MHz 18pF ±30ppm ±30ppm

E3FB25.0000F18E33 Hosonic晶振 E3FB 25MHz 18pF ±30ppm ±30ppm

E3FB26.0000F18E33 Hosonic晶振 E3FB 26MHz 18pF ±30ppm ±30ppm

E3FB27.0000F18E33 Hosonic晶振 E3FB 27MHz 18pF ±30ppm ±30ppm

E3FB28.0000F18E33 Hosonic晶振 E3FB 28MHz 18pF ±30ppm ±30ppm

E3FB29.0000F18E33 Hosonic晶振 E3FB 29MHz 18pF ±30ppm ±30ppm

E3FB30.0000F18E33 Hosonic晶振 E3FB 30MHz 18pF ±30ppm ±30ppm

E3FB31.0000F18E33 Hosonic晶振 E3FB 31MHz 18pF ±30ppm ±30ppm

E3FB32.0000F18E33 Hosonic晶振 E3FB 32MHz 18pF ±30ppm ±30ppm

E3FB33.0000F18E33 Hosonic晶振 E3FB 33MHz 18pF ±30ppm ±30ppm

E3FB34.0000F18E33 Hosonic晶振 E3FB 34MHz 18pF ±30ppm ±30ppm

E3FB35.0000F18E33 Hosonic晶振 E3FB 35MHz 18pF ±30ppm ±30ppm

E3FB36.0000F18E33 Hosonic晶振 E3FB 36MHz 18pF ±30ppm ±30ppm

E3FB37.0000F18E33 Hosonic晶振 E3FB 37MHz 18pF ±30ppm ±30ppm

E3FB38.0000F18E33 Hosonic晶振 E3FB 38MHz 18pF ±30ppm ±30ppm

E3FB39.0000F18E33 Hosonic晶振 E3FB 39MHz 18pF ±30ppm ±30ppm

E3FB40.0000F18E33 Hosonic晶振 E3FB 40MHz 18pF ±30ppm ±30ppm

E3FB41.0000F18E33 Hosonic晶振 E3FB 41MHz 18pF ±30ppm ±30ppm

E3FB42.0000F18E33 Hosonic晶振 E3FB 42MHz 18pF ±30ppm ±30ppm

E3FB43.0000F18E33 Hosonic晶振 E3FB 43MHz 18pF ±30ppm ±30ppm

E3FB44.0000F18E33 Hosonic晶振 E3FB 44MHz 18pF ±30ppm ±30ppm

E3FB45.0000F18E33 Hosonic晶振 E3FB 45MHz 18pF ±30ppm ±30ppm

E3FB46.0000F18E33 Hosonic晶振 E3FB 46MHz 18pF ±30ppm ±30ppm

E3FB47.0000F18E33 Hosonic晶振 E3FB 47MHz 18pF ±30ppm ±30ppm

E3FB48.0000F18E33 Hosonic晶振 E3FB 48MHz 18pF ±30ppm ±30ppm

E3FB49.0000F18E33 Hosonic晶振 E3FB 49MHz 18pF ±30ppm ±30ppm

E3FB50.0000F18E33 Hosonic晶振 E3FB 50MHz 18pF ±30ppm ±30ppm

E3FB51.0000F18E33 Hosonic晶振 E3FB 51MHz 18pF ±30ppm ±30ppm

E3FB52.0000F18E33 Hosonic晶振 E3FB 52MHz 18pF ±30ppm ±30ppm

E3FB53.0000F18E33 Hosonic晶振 E3FB 53MHz 18pF ±30ppm ±30ppm

E3FB54.0000F18E33 Hosonic晶振 E3FB 54MHz 18pF ±30ppm ±30ppm

E3FB55.0000F18E33 Hosonic晶振 E3FB 55MHz 18pF ±30ppm ±30ppm

E3FB56.0000F18E33 Hosonic晶振 E3FB 56MHz 18pF ±30ppm ±30ppm

E3FB57.0000F18E33 Hosonic晶振 E3FB 57MHz 18pF ±30ppm ±30ppm

E3FB58.0000F18E33 Hosonic晶振 E3FB 58MHz 18pF ±30ppm ±30ppm

E3FB59.0000F18E33 Hosonic晶振 E3FB 59MHz 18pF ±30ppm ±30ppm

E3FB60.0000F18E33 Hosonic晶振 E3FB 60MHz 18pF ±30ppm ±30ppm

E3FB61.0000F18E33 Hosonic晶振 E3FB 61MHz 18pF ±30ppm ±30ppm

E3FB62.0000F18E33 Hosonic晶振 E3FB 62MHz 18pF ±30ppm ±30ppm

E3FB63.0000F18E33 Hosonic晶振 E3FB 63MHz 18pF ±30ppm ±30ppm

E3FB64.0000F18E33 Hosonic晶振 E3FB 64MHz 18pF ±30ppm ±30ppm

E3FB65.0000F18E33 Hosonic晶振 E3FB 65MHz 18pF ±30ppm ±30ppm

E3FB66.0000F18E33 Hosonic晶振 E3FB 66MHz 18pF ±30ppm ±30ppm

E2SB10.0000F10E12 Hosonic晶振 E2SB 10MHz 10pF ±10ppm ±10ppm

E2SB12.0000F10E11 Hosonic晶振 E2SB 12MHz 10pF ±10ppm ±10ppm

E2SB16.0000F10E12 Hosonic晶振 E2SB 16MHz 10pF ±10ppm ±10ppm

E2SB17.0000F10E12 Hosonic晶振 E2SB 17MHz 10pF ±10ppm ±10ppm

E2SB18.4320F10E12 Hosonic晶振 E2SB 18.432MHz 10pF ±10ppm ±10ppm

E2SB18.0000F10E12 Hosonic晶振 E2SB 18MHz 10pF ±10ppm ±10ppm

E2SB19.0000F10E12 Hosonic晶振 E2SB 19MHz 10pF ±10ppm ±10ppm

E2SB20.0000F10E12 Hosonic晶振 E2SB 20MHz 10pF ±10ppm ±10ppm

E2SB21.0000F10E12 Hosonic晶振 E2SB 21MHz 10pF ±10ppm ±10ppm

E2SB22.0000F10E12 Hosonic晶振 E2SB 22MHz 10pF ±10ppm ±10ppm

E2SB23.0000F10E12 Hosonic晶振 E2SB 23MHz 10pF ±10ppm ±10ppm

E2SB24.0000F10E12 Hosonic晶振 E2SB 24MHz 10pF ±10ppm ±10ppm

E2SB25.0000F10E12 Hosonic晶振 E2SB 25MHz 10pF ±10ppm ±10ppm

E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm

E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm

E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm

E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm

E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm

E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm

E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm

E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm

E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm

E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm

E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm

E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm

E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm

E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm

E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm

E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm

E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm

E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm

E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm

E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm

E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm

E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm

E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm

E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm

E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm

E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm

E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm

E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm

E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm

E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm

E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm

E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm

E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm

E49A45E00000ME Hosonic晶振 E49A 45 MHz 20 pF ±30 ppm ±30 ppm

E49A46E00000ME Hosonic晶振 E49A 46 MHz 20 pF ±30 ppm ±30 ppm

E49A47E00000ME Hosonic晶振 E49A 47 MHz 20 pF ±30 ppm ±30 ppm

E49A48E00000ME Hosonic晶振 E49A 48 MHz 20 pF ±30 ppm ±30 ppm

E49A49E00000ME Hosonic晶振 E49A 49 MHz 20 pF ±30 ppm ±30 ppm

E49A50E00000ME Hosonic晶振 E49A 50 MHz 20 pF ±30 ppm ±30 ppm

E49A51E00000ME Hosonic晶振 E49A 51 MHz 20 pF ±30 ppm ±30 ppm

E49A52E00000ME Hosonic晶振 E49A 52 MHz 20 pF ±30 ppm ±30 ppm

E49A53E00000ME Hosonic晶振 E49A 53 MHz 20 pF ±30 ppm ±30 ppm

E49A54E00000ME Hosonic晶振 E49A 54 MHz 20 pF ±30 ppm ±30 ppm

E49A55E00000ME Hosonic晶振 E49A 55 MHz 20 pF ±30 ppm ±30 ppm

E49A56E00000ME Hosonic晶振 E49A 56 MHz 20 pF ±30 ppm ±30 ppm

E49A57E00000ME Hosonic晶振 E49A 57 MHz 20 pF ±30 ppm ±30 ppm

E2SB26.0000F10E12 Hosonic晶振 E2SB 26MHz 10pF ±10ppm ±10ppm

E2SB27.0000F10E12 Hosonic晶振 E2SB 27MHz 10pF ±10ppm ±10ppm

E2SB28.0000F10E12 Hosonic晶振 E2SB 28MHz 10pF ±10ppm ±10ppm

E2SB29.0000F10E12 Hosonic晶振 E2SB 29MHz 10pF ±10ppm ±10ppm

E2SB30.0000F10E12 Hosonic晶振 E2SB 30MHz 10pF ±10ppm ±10ppm

E2SB31.0000F10E12 Hosonic晶振 E2SB 31MHz 10pF ±10ppm ±10ppm

E2SB32.0000F10E12 Hosonic晶振 E2SB 32MHz 10pF ±10ppm ±10ppm

E2SB33.0000F10E12 Hosonic晶振 E2SB 33MHz 10pF ±10ppm ±10ppm

E2SB34.0000F10E12 Hosonic晶振 E2SB 34MHz 10pF ±10ppm ±10ppm

E2SB35.0000F10E12 Hosonic晶振 E2SB 35MHz 10pF ±10ppm ±10ppm

E2SB36.0000F10E12 Hosonic晶振 E2SB 36MHz 10pF ±10ppm ±10ppm

E2SB37.0000F10E12 Hosonic晶振 E2SB 37MHz 10pF ±10ppm ±10ppm

E2SB38.0000F10E12 Hosonic晶振 E2SB 38MHz 10pF ±10ppm ±10ppm

E2SB39.0000F10E12 Hosonic晶振 E2SB 39MHz 10pF ±10ppm ±10ppm

E2SB40.0000F10E12 Hosonic晶振 E2SB 40MHz 10pF ±10ppm ±10ppm

E2SB41.0000F10E12 Hosonic晶振 E2SB 41MHz 10pF ±10ppm ±10ppm

E2SB42.0000F10E12 Hosonic晶振 E2SB 42MHz 10pF ±10ppm ±10ppm

E2SB43.0000F10E12 Hosonic晶振 E2SB 43MHz 10pF ±10ppm ±10ppm

E2SB44.0000F10E12 Hosonic晶振 E2SB 44MHz 10pF ±10ppm ±10ppm

E2SB45.0000F10E12 Hosonic晶振 E2SB 45MHz 10pF ±10ppm ±10ppm

E2SB46.0000F10E12 Hosonic晶振 E2SB 46MHz 10pF ±10ppm ±10ppm

E2SB47.0000F10E12 Hosonic晶振 E2SB 47MHz 10pF ±10ppm ±10ppm

E2SB48.0000F10E12 Hosonic晶振 E2SB 48MHz 10pF ±10ppm ±10ppm

E2SB49.0000F10E12 Hosonic晶振 E2SB 49MHz 10pF ±10ppm ±10ppm

E2SB50.0000F10E12 Hosonic晶振 E2SB 50MHz 10pF ±10ppm ±10ppm

E2SB51.0000F10E12 Hosonic晶振 E2SB 51MHz 10pF ±10ppm ±10ppm

E2SB52.0000F10E12 Hosonic晶振 E2SB 52MHz 10pF ±10ppm ±10ppm

E2SB53.0000F10E12 Hosonic晶振 E2SB 53MHz 10pF ±10ppm ±10ppm

E2SB54.0000F10E12 Hosonic晶振 E2SB 54MHz 10pF ±10ppm ±10ppm

E2SB55.0000F10E12 Hosonic晶振 E2SB 55MHz 10pF ±10ppm ±10ppm

E2SB56.0000F10E12 Hosonic晶振 E2SB 56MHz 10pF ±10ppm ±10ppm

E3SB13.0000F18E22 Hosonic晶振 E3SB 13 MHz 18 pF ±20 ppm ±20 ppm

E3SB14.0000F18E22 Hosonic晶振 E3SB 14 MHz 18 pF ±20 ppm ±20 ppm

E3SB15.0000F18E22 Hosonic晶振 E3SB 15 MHz 18 pF ±20 ppm ±20 ppm

E3SB16.0000F18E22 Hosonic晶振 E3SB 16 MHz 18 pF ±20 ppm ±20 ppm

E3SB17.0000F18E22 Hosonic晶振 E3SB 17 MHz 18 pF ±20 ppm ±20 ppm

E3SB18.0000F18E22 Hosonic晶振 E3SB 18 MHz 18 pF ±20 ppm ±20 ppm

E3SB19.0000F18E22 Hosonic晶振 E3SB 19 MHz 18 pF ±20 ppm ±20 ppm

E3SB20.0000F18E22 Hosonic晶振 E3SB 20 MHz 18 pF ±20 ppm ±20 ppm

E3SB21.0000F18E22 Hosonic晶振 E3SB 21 MHz 18 pF ±20 ppm ±20 ppm

E3SB22.0000F18E22 Hosonic晶振 E3SB 22 MHz 18 pF ±20 ppm ±20 ppm

E3SB23.0000F18E22 Hosonic晶振 E3SB 23 MHz 18 pF ±20 ppm ±20 ppm

E3SB24.0000F18E22 Hosonic晶振 E3SB 24 MHz 18 pF ±20 ppm ±20 ppm

E3SB25.0000F18E22 Hosonic晶振 E3SB 25 MHz 18 pF ±20 ppm ±20 ppm

E3SB26.0000F18E22 Hosonic晶振 E3SB 26 MHz 18 pF ±20 ppm ±20 ppm

E3SB27.0000F18E22 Hosonic晶振 E3SB 27 MHz 18 pF ±20 ppm ±20 ppm

E3SB28.0000F18E22 Hosonic晶振 E3SB 28 MHz 18 pF ±20 ppm ±20 ppm

E3SB29.0000F18E22 Hosonic晶振 E3SB 29 MHz 18 pF ±20 ppm ±20 ppm

E3SB30.0000F18E22 Hosonic晶振 E3SB 30 MHz 18 pF ±20 ppm ±20 ppm

E3SB31.0000F18E22 Hosonic晶振 E3SB 31 MHz 18 pF ±20 ppm ±20 ppm

E3SB32.0000F18E22 Hosonic晶振 E3SB 32 MHz 18 pF ±20 ppm ±20 ppm

E3SB33.0000F18E22 Hosonic晶振 E3SB 33 MHz 18 pF ±20 ppm ±20 ppm

E3SB34.0000F18E22 Hosonic晶振 E3SB 34 MHz 18 pF ±20 ppm ±20 ppm

E3SB35.0000F18E22 Hosonic晶振 E3SB 35 MHz 18 pF ±20 ppm ±20 ppm

E3SB36.0000F18E22 Hosonic晶振 E3SB 36 MHz 18 pF ±20 ppm ±20 ppm

E3SB37.0000F18E22 Hosonic晶振 E3SB 37 MHz 18 pF ±20 ppm ±20 ppm

E3SB38.0000F18E22 Hosonic晶振 E3SB 38 MHz 18 pF ±20 ppm ±20 ppm

E3SB39.0000F18E22 Hosonic晶振 E3SB 39 MHz 18 pF ±20 ppm ±20 ppm

E3SB40.0000F18E22 Hosonic晶振 E3SB 40 MHz 18 pF ±20 ppm ±20 ppm

E3SB41.0000F18E22 Hosonic晶振 E3SB 41 MHz 18 pF ±20 ppm ±20 ppm

E3SB42.0000F18E22 Hosonic晶振 E3SB 42 MHz 18 pF ±20 ppm ±20 ppm

E3SB43.0000F18E22 Hosonic晶振 E3SB 43 MHz 18 pF ±20 ppm ±20 ppm

E3SB44.0000F18E22 Hosonic晶振 E3SB 44 MHz 18 pF ±20 ppm ±20 ppm

E3SB45.0000F18E22 Hosonic晶振 E3SB 45MHz 18 pF ±20 ppm ±20 ppm

E3SB46.0000F18E22 Hosonic晶振 E3SB 46MHz 18 pF ±20 ppm ±20 ppm

E3SB47.0000F18E22 Hosonic晶振 E3SB 47MHz 18 pF ±20 ppm ±20 ppm

E3SB48.0000F18E22 Hosonic晶振 E3SB 48MHz 18 pF ±20 ppm ±20 ppm

E3SB49.0000F18E22 Hosonic晶振 E3SB 49MHz 18 pF ±20 ppm ±20 ppm

E3SB50.0000F18E22 Hosonic晶振 E3SB 50MHz 18 pF ±20 ppm ±20 ppm

E3SB51.0000F18E22 Hosonic晶振 E3SB 51MHz 18 pF ±20 ppm ±20 ppm

E3SB52.0000F18E22 Hosonic晶振 E3SB 52MHz 18 pF ±20 ppm ±20 ppm

E3SB53.0000F18E22 Hosonic晶振 E3SB 53MHz 18 pF ±20 ppm ±20 ppm

E3SB54.0000F18E22 Hosonic晶振 E3SB 54MHz 18 pF ±20 ppm ±20 ppm

E3SB55.0000F18E22 Hosonic晶振 E3SB 55MHz 18 pF ±20 ppm ±20 ppm

E3SB56.0000F18E22 Hosonic晶振 E3SB 56MHz 18 pF ±20 ppm ±20 ppm

E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm

E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm

E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm

E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm

E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm

E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm

E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm

E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm

E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm

E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm

E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm

E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm

E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm

E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm

E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm

E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm

E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm

E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm

E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm

E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm

E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm

E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm

E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm

E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm

E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm

E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm

E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm

E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm

E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm

E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm

E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm

E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm

E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm

E49A45E00000ME Hosonic晶振 E49A 45MHz 20 pF ±30 ppm ±30 ppm

E49A46E00000ME Hosonic晶振 E49A 46MHz 20 pF ±30 ppm ±30 ppm

E49A47E00000ME Hosonic晶振 E49A 47MHz 20 pF ±30 ppm ±30 ppm

E49A48E00000ME Hosonic晶振 E49A 48MHz 20 pF ±30 ppm ±30 ppm

E49B12E000022E Hosonic晶振 E49B 12 MHz 10 pF ±30 ppm ±30 ppm

E49B13E000022E Hosonic晶振 E49B 13 MHz 10 pF ±30 ppm ±30 ppm

E49B14E000022E Hosonic晶振 E49B 14 MHz 10 pF ±30 ppm ±30 ppm

E49B15E000022E Hosonic晶振 E49B 15 MHz 10 pF ±30 ppm ±30 ppm

E49B16E000022E Hosonic晶振 E49B 16 MHz 10 pF ±30 ppm ±30 ppm

E49B17E000022E Hosonic晶振 E49B 17 MHz 10 pF ±30 ppm ±30 ppm

E49B18E000022E Hosonic晶振 E49B 18 MHz 10 pF ±30 ppm ±30 ppm

E49B19E000022E Hosonic晶振 E49B 19 MHz 10 pF ±30 ppm ±30 ppm

E49B20E000022E Hosonic晶振 E49B 20 MHz 10 pF ±30 ppm ±30 ppm

E49B21E000022E Hosonic晶振 E49B 21 MHz 10 pF ±30 ppm ±30 ppm

E49B22E000022E Hosonic晶振 E49B 22 MHz 10 pF ±30 ppm ±30 ppm

E49B23E000022E Hosonic晶振 E49B 23 MHz 10 pF ±30 ppm ±30 ppm

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://m.cuifesek.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!

微信:taihekj QQ:794113422

相關產品

Item	Type	E3SB
Frequency Range	F0	24 MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	16 pF
Frequency Tolerance	ΔF/ F0	±10ppm (At 25℃)
Equivalent Series Resistance	ESR	50 Ω max.
Temperature Stability	TC	±10ppm (Refer to 25℃)
Operating Temperature Range	TOPR	-30~+85℃
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	3pF max.
Insulator Resistance	IR	500MΩ min. (At 100VDC)
Drive Level	DL	100 μW (200 μW max.）
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

原廠編碼	制造廠家	型號	頻率	負載電容	頻率容差	頻率穩定度
E3FB16.0000F18E33	Hosonic晶振	E3FB	16MHz	18pF	±30ppm	±30ppm
E3FB17.0000F18E33	Hosonic晶振	E3FB	17MHz	18pF	±30ppm	±30ppm
E3FB18.0000F18E33	Hosonic晶振	E3FB	18MHz	18pF	±30ppm	±30ppm
E3FB19.0000F18E33	Hosonic晶振	E3FB	19MHz	18pF	±30ppm	±30ppm
E3FB20.0000F18E33	Hosonic晶振	E3FB	20MHz	18pF	±30ppm	±30ppm
E3FB21.0000F18E33	Hosonic晶振	E3FB	21MHz	18pF	±30ppm	±30ppm
E3FB22.0000F18E33	Hosonic晶振	E3FB	22MHz	18pF	±30ppm	±30ppm
E3FB23.0000F18E33	Hosonic晶振	E3FB	23MHz	18pF	±30ppm	±30ppm
E3FB24.0000F18E33	Hosonic晶振	E3FB	24MHz	18pF	±30ppm	±30ppm
E3FB25.0000F18E33	Hosonic晶振	E3FB	25MHz	18pF	±30ppm	±30ppm
E3FB26.0000F18E33	Hosonic晶振	E3FB	26MHz	18pF	±30ppm	±30ppm
E3FB27.0000F18E33	Hosonic晶振	E3FB	27MHz	18pF	±30ppm	±30ppm
E3FB28.0000F18E33	Hosonic晶振	E3FB	28MHz	18pF	±30ppm	±30ppm
E3FB29.0000F18E33	Hosonic晶振	E3FB	29MHz	18pF	±30ppm	±30ppm
E3FB30.0000F18E33	Hosonic晶振	E3FB	30MHz	18pF	±30ppm	±30ppm
E3FB31.0000F18E33	Hosonic晶振	E3FB	31MHz	18pF	±30ppm	±30ppm
E3FB32.0000F18E33	Hosonic晶振	E3FB	32MHz	18pF	±30ppm	±30ppm
E3FB33.0000F18E33	Hosonic晶振	E3FB	33MHz	18pF	±30ppm	±30ppm
E3FB34.0000F18E33	Hosonic晶振	E3FB	34MHz	18pF	±30ppm	±30ppm
E3FB35.0000F18E33	Hosonic晶振	E3FB	35MHz	18pF	±30ppm	±30ppm
E3FB36.0000F18E33	Hosonic晶振	E3FB	36MHz	18pF	±30ppm	±30ppm
E3FB37.0000F18E33	Hosonic晶振	E3FB	37MHz	18pF	±30ppm	±30ppm
E3FB38.0000F18E33	Hosonic晶振	E3FB	38MHz	18pF	±30ppm	±30ppm
E3FB39.0000F18E33	Hosonic晶振	E3FB	39MHz	18pF	±30ppm	±30ppm
E3FB40.0000F18E33	Hosonic晶振	E3FB	40MHz	18pF	±30ppm	±30ppm
E3FB41.0000F18E33	Hosonic晶振	E3FB	41MHz	18pF	±30ppm	±30ppm
E3FB42.0000F18E33	Hosonic晶振	E3FB	42MHz	18pF	±30ppm	±30ppm
E3FB43.0000F18E33	Hosonic晶振	E3FB	43MHz	18pF	±30ppm	±30ppm
E3FB44.0000F18E33	Hosonic晶振	E3FB	44MHz	18pF	±30ppm	±30ppm
E3FB45.0000F18E33	Hosonic晶振	E3FB	45MHz	18pF	±30ppm	±30ppm
E3FB46.0000F18E33	Hosonic晶振	E3FB	46MHz	18pF	±30ppm	±30ppm
E3FB47.0000F18E33	Hosonic晶振	E3FB	47MHz	18pF	±30ppm	±30ppm
E3FB48.0000F18E33	Hosonic晶振	E3FB	48MHz	18pF	±30ppm	±30ppm
E3FB49.0000F18E33	Hosonic晶振	E3FB	49MHz	18pF	±30ppm	±30ppm
E3FB50.0000F18E33	Hosonic晶振	E3FB	50MHz	18pF	±30ppm	±30ppm
E3FB51.0000F18E33	Hosonic晶振	E3FB	51MHz	18pF	±30ppm	±30ppm
E3FB52.0000F18E33	Hosonic晶振	E3FB	52MHz	18pF	±30ppm	±30ppm
E3FB53.0000F18E33	Hosonic晶振	E3FB	53MHz	18pF	±30ppm	±30ppm
E3FB54.0000F18E33	Hosonic晶振	E3FB	54MHz	18pF	±30ppm	±30ppm
E3FB55.0000F18E33	Hosonic晶振	E3FB	55MHz	18pF	±30ppm	±30ppm
E3FB56.0000F18E33	Hosonic晶振	E3FB	56MHz	18pF	±30ppm	±30ppm
E3FB57.0000F18E33	Hosonic晶振	E3FB	57MHz	18pF	±30ppm	±30ppm
E3FB58.0000F18E33	Hosonic晶振	E3FB	58MHz	18pF	±30ppm	±30ppm
E3FB59.0000F18E33	Hosonic晶振	E3FB	59MHz	18pF	±30ppm	±30ppm
E3FB60.0000F18E33	Hosonic晶振	E3FB	60MHz	18pF	±30ppm	±30ppm
E3FB61.0000F18E33	Hosonic晶振	E3FB	61MHz	18pF	±30ppm	±30ppm
E3FB62.0000F18E33	Hosonic晶振	E3FB	62MHz	18pF	±30ppm	±30ppm
E3FB63.0000F18E33	Hosonic晶振	E3FB	63MHz	18pF	±30ppm	±30ppm
E3FB64.0000F18E33	Hosonic晶振	E3FB	64MHz	18pF	±30ppm	±30ppm
E3FB65.0000F18E33	Hosonic晶振	E3FB	65MHz	18pF	±30ppm	±30ppm
E3FB66.0000F18E33	Hosonic晶振	E3FB	66MHz	18pF	±30ppm	±30ppm
E2SB10.0000F10E12	Hosonic晶振	E2SB	10MHz	10pF	±10ppm	±10ppm
E2SB12.0000F10E11	Hosonic晶振	E2SB	12MHz	10pF	±10ppm	±10ppm
E2SB16.0000F10E12	Hosonic晶振	E2SB	16MHz	10pF	±10ppm	±10ppm
E2SB17.0000F10E12	Hosonic晶振	E2SB	17MHz	10pF	±10ppm	±10ppm
E2SB18.4320F10E12	Hosonic晶振	E2SB	18.432MHz	10pF	±10ppm	±10ppm
E2SB18.0000F10E12	Hosonic晶振	E2SB	18MHz	10pF	±10ppm	±10ppm
E2SB19.0000F10E12	Hosonic晶振	E2SB	19MHz	10pF	±10ppm	±10ppm
E2SB20.0000F10E12	Hosonic晶振	E2SB	20MHz	10pF	±10ppm	±10ppm
E2SB21.0000F10E12	Hosonic晶振	E2SB	21MHz	10pF	±10ppm	±10ppm
E2SB22.0000F10E12	Hosonic晶振	E2SB	22MHz	10pF	±10ppm	±10ppm
E2SB23.0000F10E12	Hosonic晶振	E2SB	23MHz	10pF	±10ppm	±10ppm
E2SB24.0000F10E12	Hosonic晶振	E2SB	24MHz	10pF	±10ppm	±10ppm
E2SB25.0000F10E12	Hosonic晶振	E2SB	25MHz	10pF	±10ppm	±10ppm
E49A12E00000ME	Hosonic晶振	E49A	12 MHz	20 pF	±30 ppm	±30 ppm
E49A13E00000ME	Hosonic晶振	E49A	13 MHz	20 pF	±30 ppm	±30 ppm
E49A14E00000ME	Hosonic晶振	E49A	14 MHz	20 pF	±30 ppm	±30 ppm
E49A15E00000ME	Hosonic晶振	E49A	15 MHz	20 pF	±30 ppm	±30 ppm
E49A16E00000ME	Hosonic晶振	E49A	16 MHz	20 pF	±30 ppm	±30 ppm
E49A17E00000ME	Hosonic晶振	E49A	17 MHz	20 pF	±30 ppm	±30 ppm
E49A18E00000ME	Hosonic晶振	E49A	18 MHz	20 pF	±30 ppm	±30 ppm
E49A19E00000ME	Hosonic晶振	E49A	19 MHz	20 pF	±30 ppm	±30 ppm
E49A20E00000ME	Hosonic晶振	E49A	20 MHz	20 pF	±30 ppm	±30 ppm
E49A21E00000ME	Hosonic晶振	E49A	21 MHz	20 pF	±30 ppm	±30 ppm
E49A22E00000ME	Hosonic晶振	E49A	22 MHz	20 pF	±30 ppm	±30 ppm
E49A23E00000ME	Hosonic晶振	E49A	23 MHz	20 pF	±30 ppm	±30 ppm
E49A24E00000ME	Hosonic晶振	E49A	24 MHz	20 pF	±30 ppm	±30 ppm
E49A25E00000ME	Hosonic晶振	E49A	25 MHz	20 pF	±30 ppm	±30 ppm
E49A26E00000ME	Hosonic晶振	E49A	26 MHz	20 pF	±30 ppm	±30 ppm
E49A27E00000ME	Hosonic晶振	E49A	27 MHz	20 pF	±30 ppm	±30 ppm
E49A28E00000ME	Hosonic晶振	E49A	28 MHz	20 pF	±30 ppm	±30 ppm
E49A29E00000ME	Hosonic晶振	E49A	29 MHz	20 pF	±30 ppm	±30 ppm
E49A30E00000ME	Hosonic晶振	E49A	30 MHz	20 pF	±30 ppm	±30 ppm
E49A31E00000ME	Hosonic晶振	E49A	31 MHz	20 pF	±30 ppm	±30 ppm
E49A32E00000ME	Hosonic晶振	E49A	32 MHz	20 pF	±30 ppm	±30 ppm
E49A33E00000ME	Hosonic晶振	E49A	33 MHz	20 pF	±30 ppm	±30 ppm
E49A34E00000ME	Hosonic晶振	E49A	34 MHz	20 pF	±30 ppm	±30 ppm
E49A35E00000ME	Hosonic晶振	E49A	35 MHz	20 pF	±30 ppm	±30 ppm
E49A36E00000ME	Hosonic晶振	E49A	36 MHz	20 pF	±30 ppm	±30 ppm
E49A37E00000ME	Hosonic晶振	E49A	37 MHz	20 pF	±30 ppm	±30 ppm
E49A38E00000ME	Hosonic晶振	E49A	38 MHz	20 pF	±30 ppm	±30 ppm
E49A39E00000ME	Hosonic晶振	E49A	39 MHz	20 pF	±30 ppm	±30 ppm
E49A40E00000ME	Hosonic晶振	E49A	40 MHz	20 pF	±30 ppm	±30 ppm
E49A41E00000ME	Hosonic晶振	E49A	41 MHz	20 pF	±30 ppm	±30 ppm
E49A42E00000ME	Hosonic晶振	E49A	42 MHz	20 pF	±30 ppm	±30 ppm
E49A43E00000ME	Hosonic晶振	E49A	43 MHz	20 pF	±30 ppm	±30 ppm
E49A44E00000ME	Hosonic晶振	E49A	44 MHz	20 pF	±30 ppm	±30 ppm
E49A45E00000ME	Hosonic晶振	E49A	45 MHz	20 pF	±30 ppm	±30 ppm
E49A46E00000ME	Hosonic晶振	E49A	46 MHz	20 pF	±30 ppm	±30 ppm
E49A47E00000ME	Hosonic晶振	E49A	47 MHz	20 pF	±30 ppm	±30 ppm
E49A48E00000ME	Hosonic晶振	E49A	48 MHz	20 pF	±30 ppm	±30 ppm
E49A49E00000ME	Hosonic晶振	E49A	49 MHz	20 pF	±30 ppm	±30 ppm
E49A50E00000ME	Hosonic晶振	E49A	50 MHz	20 pF	±30 ppm	±30 ppm
E49A51E00000ME	Hosonic晶振	E49A	51 MHz	20 pF	±30 ppm	±30 ppm
E49A52E00000ME	Hosonic晶振	E49A	52 MHz	20 pF	±30 ppm	±30 ppm
E49A53E00000ME	Hosonic晶振	E49A	53 MHz	20 pF	±30 ppm	±30 ppm
E49A54E00000ME	Hosonic晶振	E49A	54 MHz	20 pF	±30 ppm	±30 ppm
E49A55E00000ME	Hosonic晶振	E49A	55 MHz	20 pF	±30 ppm	±30 ppm
E49A56E00000ME	Hosonic晶振	E49A	56 MHz	20 pF	±30 ppm	±30 ppm
E49A57E00000ME	Hosonic晶振	E49A	57 MHz	20 pF	±30 ppm	±30 ppm
E2SB26.0000F10E12	Hosonic晶振	E2SB	26MHz	10pF	±10ppm	±10ppm
E2SB27.0000F10E12	Hosonic晶振	E2SB	27MHz	10pF	±10ppm	±10ppm
E2SB28.0000F10E12	Hosonic晶振	E2SB	28MHz	10pF	±10ppm	±10ppm
E2SB29.0000F10E12	Hosonic晶振	E2SB	29MHz	10pF	±10ppm	±10ppm
E2SB30.0000F10E12	Hosonic晶振	E2SB	30MHz	10pF	±10ppm	±10ppm
E2SB31.0000F10E12	Hosonic晶振	E2SB	31MHz	10pF	±10ppm	±10ppm
E2SB32.0000F10E12	Hosonic晶振	E2SB	32MHz	10pF	±10ppm	±10ppm
E2SB33.0000F10E12	Hosonic晶振	E2SB	33MHz	10pF	±10ppm	±10ppm
E2SB34.0000F10E12	Hosonic晶振	E2SB	34MHz	10pF	±10ppm	±10ppm
E2SB35.0000F10E12	Hosonic晶振	E2SB	35MHz	10pF	±10ppm	±10ppm
E2SB36.0000F10E12	Hosonic晶振	E2SB	36MHz	10pF	±10ppm	±10ppm
E2SB37.0000F10E12	Hosonic晶振	E2SB	37MHz	10pF	±10ppm	±10ppm
E2SB38.0000F10E12	Hosonic晶振	E2SB	38MHz	10pF	±10ppm	±10ppm
E2SB39.0000F10E12	Hosonic晶振	E2SB	39MHz	10pF	±10ppm	±10ppm
E2SB40.0000F10E12	Hosonic晶振	E2SB	40MHz	10pF	±10ppm	±10ppm
E2SB41.0000F10E12	Hosonic晶振	E2SB	41MHz	10pF	±10ppm	±10ppm
E2SB42.0000F10E12	Hosonic晶振	E2SB	42MHz	10pF	±10ppm	±10ppm
E2SB43.0000F10E12	Hosonic晶振	E2SB	43MHz	10pF	±10ppm	±10ppm
E2SB44.0000F10E12	Hosonic晶振	E2SB	44MHz	10pF	±10ppm	±10ppm
E2SB45.0000F10E12	Hosonic晶振	E2SB	45MHz	10pF	±10ppm	±10ppm
E2SB46.0000F10E12	Hosonic晶振	E2SB	46MHz	10pF	±10ppm	±10ppm
E2SB47.0000F10E12	Hosonic晶振	E2SB	47MHz	10pF	±10ppm	±10ppm
E2SB48.0000F10E12	Hosonic晶振	E2SB	48MHz	10pF	±10ppm	±10ppm
E2SB49.0000F10E12	Hosonic晶振	E2SB	49MHz	10pF	±10ppm	±10ppm
E2SB50.0000F10E12	Hosonic晶振	E2SB	50MHz	10pF	±10ppm	±10ppm
E2SB51.0000F10E12	Hosonic晶振	E2SB	51MHz	10pF	±10ppm	±10ppm
E2SB52.0000F10E12	Hosonic晶振	E2SB	52MHz	10pF	±10ppm	±10ppm
E2SB53.0000F10E12	Hosonic晶振	E2SB	53MHz	10pF	±10ppm	±10ppm
E2SB54.0000F10E12	Hosonic晶振	E2SB	54MHz	10pF	±10ppm	±10ppm
E2SB55.0000F10E12	Hosonic晶振	E2SB	55MHz	10pF	±10ppm	±10ppm
E2SB56.0000F10E12	Hosonic晶振	E2SB	56MHz	10pF	±10ppm	±10ppm
E3SB13.0000F18E22	Hosonic晶振	E3SB	13 MHz	18 pF	±20 ppm	±20 ppm
E3SB14.0000F18E22	Hosonic晶振	E3SB	14 MHz	18 pF	±20 ppm	±20 ppm
E3SB15.0000F18E22	Hosonic晶振	E3SB	15 MHz	18 pF	±20 ppm	±20 ppm
E3SB16.0000F18E22	Hosonic晶振	E3SB	16 MHz	18 pF	±20 ppm	±20 ppm
E3SB17.0000F18E22	Hosonic晶振	E3SB	17 MHz	18 pF	±20 ppm	±20 ppm
E3SB18.0000F18E22	Hosonic晶振	E3SB	18 MHz	18 pF	±20 ppm	±20 ppm
E3SB19.0000F18E22	Hosonic晶振	E3SB	19 MHz	18 pF	±20 ppm	±20 ppm
E3SB20.0000F18E22	Hosonic晶振	E3SB	20 MHz	18 pF	±20 ppm	±20 ppm
E3SB21.0000F18E22	Hosonic晶振	E3SB	21 MHz	18 pF	±20 ppm	±20 ppm
E3SB22.0000F18E22	Hosonic晶振	E3SB	22 MHz	18 pF	±20 ppm	±20 ppm
E3SB23.0000F18E22	Hosonic晶振	E3SB	23 MHz	18 pF	±20 ppm	±20 ppm
E3SB24.0000F18E22	Hosonic晶振	E3SB	24 MHz	18 pF	±20 ppm	±20 ppm
E3SB25.0000F18E22	Hosonic晶振	E3SB	25 MHz	18 pF	±20 ppm	±20 ppm
E3SB26.0000F18E22	Hosonic晶振	E3SB	26 MHz	18 pF	±20 ppm	±20 ppm
E3SB27.0000F18E22	Hosonic晶振	E3SB	27 MHz	18 pF	±20 ppm	±20 ppm
E3SB28.0000F18E22	Hosonic晶振	E3SB	28 MHz	18 pF	±20 ppm	±20 ppm
E3SB29.0000F18E22	Hosonic晶振	E3SB	29 MHz	18 pF	±20 ppm	±20 ppm
E3SB30.0000F18E22	Hosonic晶振	E3SB	30 MHz	18 pF	±20 ppm	±20 ppm
E3SB31.0000F18E22	Hosonic晶振	E3SB	31 MHz	18 pF	±20 ppm	±20 ppm
E3SB32.0000F18E22	Hosonic晶振	E3SB	32 MHz	18 pF	±20 ppm	±20 ppm
E3SB33.0000F18E22	Hosonic晶振	E3SB	33 MHz	18 pF	±20 ppm	±20 ppm
E3SB34.0000F18E22	Hosonic晶振	E3SB	34 MHz	18 pF	±20 ppm	±20 ppm
E3SB35.0000F18E22	Hosonic晶振	E3SB	35 MHz	18 pF	±20 ppm	±20 ppm
E3SB36.0000F18E22	Hosonic晶振	E3SB	36 MHz	18 pF	±20 ppm	±20 ppm
E3SB37.0000F18E22	Hosonic晶振	E3SB	37 MHz	18 pF	±20 ppm	±20 ppm
E3SB38.0000F18E22	Hosonic晶振	E3SB	38 MHz	18 pF	±20 ppm	±20 ppm
E3SB39.0000F18E22	Hosonic晶振	E3SB	39 MHz	18 pF	±20 ppm	±20 ppm
E3SB40.0000F18E22	Hosonic晶振	E3SB	40 MHz	18 pF	±20 ppm	±20 ppm
E3SB41.0000F18E22	Hosonic晶振	E3SB	41 MHz	18 pF	±20 ppm	±20 ppm
E3SB42.0000F18E22	Hosonic晶振	E3SB	42 MHz	18 pF	±20 ppm	±20 ppm
E3SB43.0000F18E22	Hosonic晶振	E3SB	43 MHz	18 pF	±20 ppm	±20 ppm
E3SB44.0000F18E22	Hosonic晶振	E3SB	44 MHz	18 pF	±20 ppm	±20 ppm
E3SB45.0000F18E22	Hosonic晶振	E3SB	45MHz	18 pF	±20 ppm	±20 ppm
E3SB46.0000F18E22	Hosonic晶振	E3SB	46MHz	18 pF	±20 ppm	±20 ppm
E3SB47.0000F18E22	Hosonic晶振	E3SB	47MHz	18 pF	±20 ppm	±20 ppm
E3SB48.0000F18E22	Hosonic晶振	E3SB	48MHz	18 pF	±20 ppm	±20 ppm
E3SB49.0000F18E22	Hosonic晶振	E3SB	49MHz	18 pF	±20 ppm	±20 ppm
E3SB50.0000F18E22	Hosonic晶振	E3SB	50MHz	18 pF	±20 ppm	±20 ppm
E3SB51.0000F18E22	Hosonic晶振	E3SB	51MHz	18 pF	±20 ppm	±20 ppm
E3SB52.0000F18E22	Hosonic晶振	E3SB	52MHz	18 pF	±20 ppm	±20 ppm
E3SB53.0000F18E22	Hosonic晶振	E3SB	53MHz	18 pF	±20 ppm	±20 ppm
E3SB54.0000F18E22	Hosonic晶振	E3SB	54MHz	18 pF	±20 ppm	±20 ppm
E3SB55.0000F18E22	Hosonic晶振	E3SB	55MHz	18 pF	±20 ppm	±20 ppm
E3SB56.0000F18E22	Hosonic晶振	E3SB	56MHz	18 pF	±20 ppm	±20 ppm
E49A12E00000ME	Hosonic晶振	E49A	12 MHz	20 pF	±30 ppm	±30 ppm
E49A13E00000ME	Hosonic晶振	E49A	13 MHz	20 pF	±30 ppm	±30 ppm
E49A14E00000ME	Hosonic晶振	E49A	14 MHz	20 pF	±30 ppm	±30 ppm
E49A15E00000ME	Hosonic晶振	E49A	15 MHz	20 pF	±30 ppm	±30 ppm
E49A16E00000ME	Hosonic晶振	E49A	16 MHz	20 pF	±30 ppm	±30 ppm
E49A17E00000ME	Hosonic晶振	E49A	17 MHz	20 pF	±30 ppm	±30 ppm
E49A18E00000ME	Hosonic晶振	E49A	18 MHz	20 pF	±30 ppm	±30 ppm
E49A19E00000ME	Hosonic晶振	E49A	19 MHz	20 pF	±30 ppm	±30 ppm
E49A20E00000ME	Hosonic晶振	E49A	20 MHz	20 pF	±30 ppm	±30 ppm
E49A21E00000ME	Hosonic晶振	E49A	21 MHz	20 pF	±30 ppm	±30 ppm
E49A22E00000ME	Hosonic晶振	E49A	22 MHz	20 pF	±30 ppm	±30 ppm
E49A23E00000ME	Hosonic晶振	E49A	23 MHz	20 pF	±30 ppm	±30 ppm
E49A24E00000ME	Hosonic晶振	E49A	24 MHz	20 pF	±30 ppm	±30 ppm
E49A25E00000ME	Hosonic晶振	E49A	25 MHz	20 pF	±30 ppm	±30 ppm
E49A26E00000ME	Hosonic晶振	E49A	26 MHz	20 pF	±30 ppm	±30 ppm
E49A27E00000ME	Hosonic晶振	E49A	27 MHz	20 pF	±30 ppm	±30 ppm
E49A28E00000ME	Hosonic晶振	E49A	28 MHz	20 pF	±30 ppm	±30 ppm
E49A29E00000ME	Hosonic晶振	E49A	29 MHz	20 pF	±30 ppm	±30 ppm
E49A30E00000ME	Hosonic晶振	E49A	30 MHz	20 pF	±30 ppm	±30 ppm
E49A31E00000ME	Hosonic晶振	E49A	31 MHz	20 pF	±30 ppm	±30 ppm
E49A32E00000ME	Hosonic晶振	E49A	32 MHz	20 pF	±30 ppm	±30 ppm
E49A33E00000ME	Hosonic晶振	E49A	33 MHz	20 pF	±30 ppm	±30 ppm
E49A34E00000ME	Hosonic晶振	E49A	34 MHz	20 pF	±30 ppm	±30 ppm
E49A35E00000ME	Hosonic晶振	E49A	35 MHz	20 pF	±30 ppm	±30 ppm
E49A36E00000ME	Hosonic晶振	E49A	36 MHz	20 pF	±30 ppm	±30 ppm
E49A37E00000ME	Hosonic晶振	E49A	37 MHz	20 pF	±30 ppm	±30 ppm
E49A38E00000ME	Hosonic晶振	E49A	38 MHz	20 pF	±30 ppm	±30 ppm
E49A39E00000ME	Hosonic晶振	E49A	39 MHz	20 pF	±30 ppm	±30 ppm
E49A40E00000ME	Hosonic晶振	E49A	40 MHz	20 pF	±30 ppm	±30 ppm
E49A41E00000ME	Hosonic晶振	E49A	41 MHz	20 pF	±30 ppm	±30 ppm
E49A42E00000ME	Hosonic晶振	E49A	42 MHz	20 pF	±30 ppm	±30 ppm
E49A43E00000ME	Hosonic晶振	E49A	43 MHz	20 pF	±30 ppm	±30 ppm
E49A44E00000ME	Hosonic晶振	E49A	44 MHz	20 pF	±30 ppm	±30 ppm
E49A45E00000ME	Hosonic晶振	E49A	45MHz	20 pF	±30 ppm	±30 ppm
E49A46E00000ME	Hosonic晶振	E49A	46MHz	20 pF	±30 ppm	±30 ppm
E49A47E00000ME	Hosonic晶振	E49A	47MHz	20 pF	±30 ppm	±30 ppm
E49A48E00000ME	Hosonic晶振	E49A	48MHz	20 pF	±30 ppm	±30 ppm
E49B12E000022E	Hosonic晶振	E49B	12 MHz	10 pF	±30 ppm	±30 ppm
E49B13E000022E	Hosonic晶振	E49B	13 MHz	10 pF	±30 ppm	±30 ppm
E49B14E000022E	Hosonic晶振	E49B	14 MHz	10 pF	±30 ppm	±30 ppm
E49B15E000022E	Hosonic晶振	E49B	15 MHz	10 pF	±30 ppm	±30 ppm
E49B16E000022E	Hosonic晶振	E49B	16 MHz	10 pF	±30 ppm	±30 ppm
E49B17E000022E	Hosonic晶振	E49B	17 MHz	10 pF	±30 ppm	±30 ppm
E49B18E000022E	Hosonic晶振	E49B	18 MHz	10 pF	±30 ppm	±30 ppm
E49B19E000022E	Hosonic晶振	E49B	19 MHz	10 pF	±30 ppm	±30 ppm
E49B20E000022E	Hosonic晶振	E49B	20 MHz	10 pF	±30 ppm	±30 ppm
E49B21E000022E	Hosonic晶振	E49B	21 MHz	10 pF	±30 ppm	±30 ppm
E49B22E000022E	Hosonic晶振	E49B	22 MHz	10 pF	±30 ppm	±30 ppm
E49B23E000022E	Hosonic晶振	E49B	23 MHz	10 pF	±30 ppm	±30 ppm

泰河盛電子Dong TaiHe Electronic

進口晶振

晶振最新行情

Hosonic Crystal|E3SB24E00004XE

相關產品

泰河盛電子

泰河盛電子
Dong TaiHe Electronic
