迷人包裝的SMD有源晶振ASA2-12.000MHZ-L-T非常適合于便攜式電子設備，連續電壓振蕩器，石英晶振非常適用于一般MCU, USB，以太網，Wi-Fi和藍牙IC的計算機和外圍設備，局域網(LAN)，醫療，測試和測量，工業控制和自動化，消費電子和廣域網設計。它們是物聯網和安全應用(如網絡攝像頭、dvr、訪問控制系統以及便攜式和可穿戴設備)的理想時鐘源。

這三個振蕩器系列具有工業標準的封裝尺寸，穩定性選項和電源電壓。ASADV, ASDDV和ASEDV系列在庫存和可通過ABRACON晶振的全球分銷網絡。

Manufacturer Part Number	Manufacturer品牌	歐美晶振	Type 類型	Frequency 頻率	Voltage - Supply電壓	Operating Temperature 工作溫度
ASH7K-32.768KHZ-T	Abracon晶振	ASH7K	XO (Standard)	32.768kHz	3.3V	-40°C ~ 85°C
ASVTX-12-A-16.368MHZ-I15-T	Abracon晶振	ASVTX-12	VCTCXO	16.368MHz	3V	-40°C ~ 85°C
ASVTX-12-A-16.369MHZ-I15-T	Abracon晶振	ASVTX-12	VCTCXO	16.369MHz	3V	-40°C ~ 85°C
ASVTX-12-A-38.400MHZ-I15-T	Abracon晶振	ASVTX-12	VCTCXO	38.4MHz	3V	-40°C ~ 85°C
ASVTX-11-A-19.200MHZ-T	Abracon晶振	ASVTX-11	VCTCXO	19.2MHz	3V	-30°C ~ 75°C
ASVTX-11-A-38.400MHZ-T	Abracon晶振	ASVTX-11	VCTCXO	38.4MHz	3V	-30°C ~ 75°C
ASA-27.000MHZ-L-T	Abracon晶振	ASA	XO (Standard)	27MHz	3.3V	-40°C ~ 85°C
ASA2-12.000MHZ-L-T	Abracon晶振	ASA	XO (Standard)	12MHz	1.8V	-40°C ~ 85°C
ASA2-27.000MHZ-L-T	Abracon晶振	ASA	XO (Standard)	27MHz	1.8V	-40°C ~ 85°C
ASA-24.000MHZ-L-T	Abracon晶振	ASA	XO (Standard)	24MHz	3.3V	-40°C ~ 85°C
ASA2-25.000MHZ-L-T	Abracon晶振	ASA	XO (Standard)	25MHz	1.8V	-40°C ~ 85°C
ASA2-26.000MHZ-L-T	Abracon晶振	ASA	XO (Standard)	26MHz	1.8V	-40°C ~ 85°C
ASV-150.000MHZ-EC-T	Abracon晶振	ASV	XO (Standard)	150MHz	3.3V	-20°C ~ 70°C
ASVTX-09-13.00MHZ-T	Abracon晶振	ASVTX-09	VCTCXO	13MHz	3V	-30°C ~ 75°C
ASVTX-09-16.000MHZ-T	Abracon晶振	ASVTX-09	VCTCXO	16MHz	3V	-30°C ~ 75°C
ASVTX-09-16.800MHZ-T	Abracon晶振	ASVTX-09	VCTCXO	16.8MHz	3V	-30°C ~ 75°C
ASVTX-09-19.200MHZ-T	Abracon晶振	ASVTX-09	VCTCXO	19.2MHz	3V	-30°C ~ 75°C

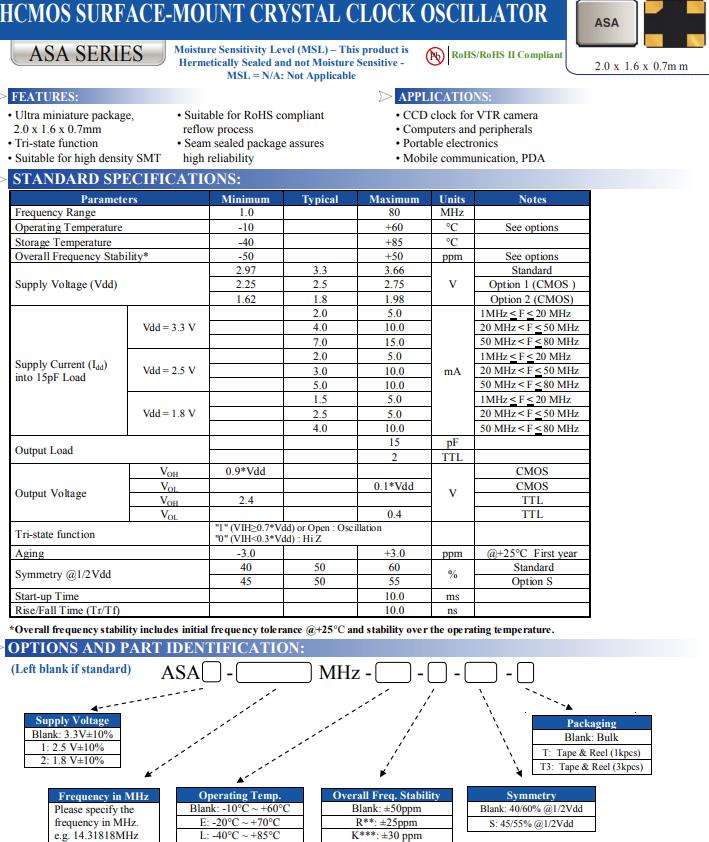

迷人包裝的SMD有源晶振ASA2-12.000MHZ-L-T非常適合于便攜式電子設備，Abracon很高興發布這款ASA2-12.000MHZ-L-T晶振，進口晶振超迷你包,2.0 x 1.6 x 0.7mm，三態函數，適合高密度SMT，符合RoHS標準回流過程，接縫密封包裝保證，高可靠性，應用：錄像機CCD時鐘，計算機和外圍設備，便攜式電子設備，移動通信，PDA.

The Continuous Voltage oscillators are well-suited for general MCU, USB, Ethernet, Wi-Fi, and Bluetooth IC’s for computer and peripheral, local area networking (LAN), medical, test and measurement, industrial control and automation, consumer electronic, and WANS designs. They make ideal clock sources for IoT and security applications such as network cameras, DVRs, access control systems, and portable and wearable devices.

These three oscillator series are available with industry-standard package sizes, stability options and supply voltages. The ASADV, ASDDV and ASEDV series are in stock and available through Abracon’s global distribution network.
