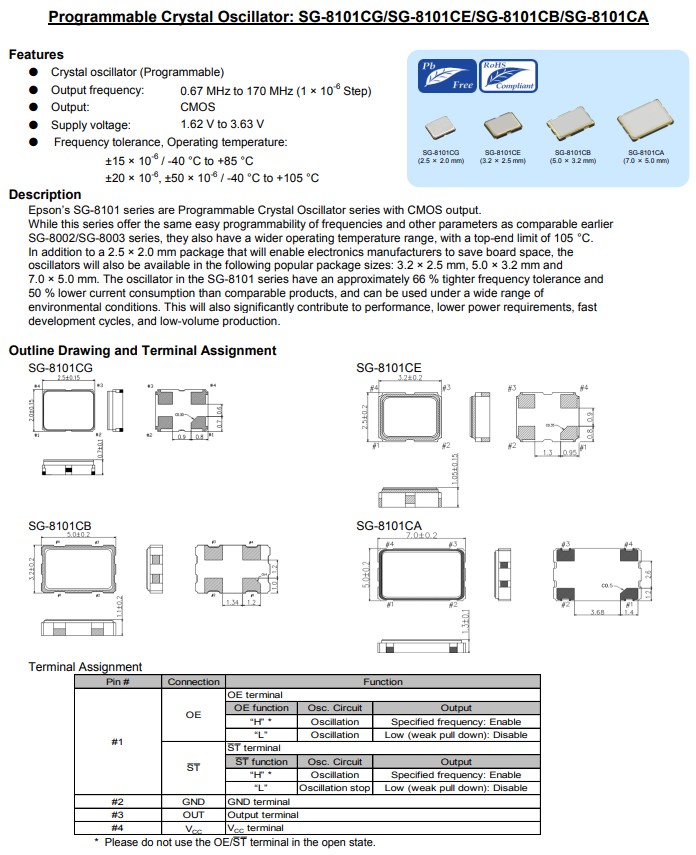

愛普生晶振SG-8101系列是具有CMOS輸出的可編程晶振系列。雖然該系列提供了與早期類似的頻率和其它參數的同樣容易的可編程性 SG-8002/SG-8003系列，它們還具有更寬的工作溫度范圍，上限為105℃。除了2.5x2.0 mm封裝有助于電子制造商節省電路板空間之外，這些振蕩器還提供以下常見封裝尺寸:3.2×2.5mm、5.0×3.2mm和7.0×5.0mm貼片晶振。SG-8101系列中的振蕩器的頻率容差約小66% 電流消耗比同類產品低50%，可在各種環境條件下使用。這也將大大有助于提高性能、降低功耗要求、縮短開發周期和實現小批量生產。適用于5G移動通訊、工業控制、消費電子，智能安防，物聯網，車載電子，光電技術及各種變頻調速設備等通訊設備。

特征：

晶體振蕩器(可編程)

輸出頻率：0.67MHz至170MHz (1x10-6步進)

輸出：CMOS有源晶振

電源電壓：1.62V至3.63V

頻率容差、工作溫度：15×10-6/-40℃至+85℃，20 × 10-6、50×10-6/-40℃至+105℃

SG-8101CA可編程晶振X1G005191001300適用于5G移動通訊,X1G005191002700,晶體振蕩器

產品編碼	頻率	進口晶振	尺寸(長寬高)	輸出波	電源電壓
X1G005191001100	32.507937MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001200	60.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001300	100.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001400	80.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001500	48.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001600	27.500000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001700	22.500000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001800	73.333700MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191001900	60.000300MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002000	22.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002100	18.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002200	25.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002300	69.120000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002400	5.560000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002500	66.666000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002600	13.516800MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002700	25.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002800	125.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191002900	50.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V

X1G005191008600	36.800000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191008700	19.660800MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191008800	33.330000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191008900	48.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009000	100.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009100	20.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009200	8.192000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009300	125.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009400	12.800000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009500	29.491200MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009600	66.667000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009700	60.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009800	40.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191009900	12.500000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010000	2.048000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010100	10.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010200	7.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010300	15.360000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010400	40.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010500	30.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010600	4.915200MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010700	15.360000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V
X1G005191010800	33.000000MHz	SG-8101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V

SG-8101CA可編程晶振X1G005191001300適用于5G移動通訊,X1G005191002700,晶體振蕩器
日系的愛普生晶振SG-8101系列，可編程晶振是現在市場被接納度較高的一個品牌，可支持更高精度15ppm。愛普生注重自主品牌的建設，掌握自主研制，定制，實現全套的晶振工藝技術流程,擁有可編程晶振技術的自主技術專利和產品線，能夠為客戶提供全國產化晶振解決方案.

SG-8101CA（7.0*5.0*1.3mm）

SG-8101CB（5.0*3.2*1.1mm）

SG-8101CE（3.2*2.5*1.05mm）

SG-8101CG（2.5*2.0*0.7mm）

SG-8101CJA（2.5*2.0*0.7mm）AEC-Q100認證
