愛普生是業內擁有超高人氣的日產晶振品牌,不僅在日本而且在國際上也同樣赫赫有名.愛普生晶振成立于1942年,一直以來為研發生產更高精密,高性能晶振產品不斷努力.多年來積累了豐富的專業知識,以獨特的生產技術為世界不同領域提供質優價廉的石英晶振,貼片晶振,石英晶體振蕩器,壓電水晶振蕩子等.

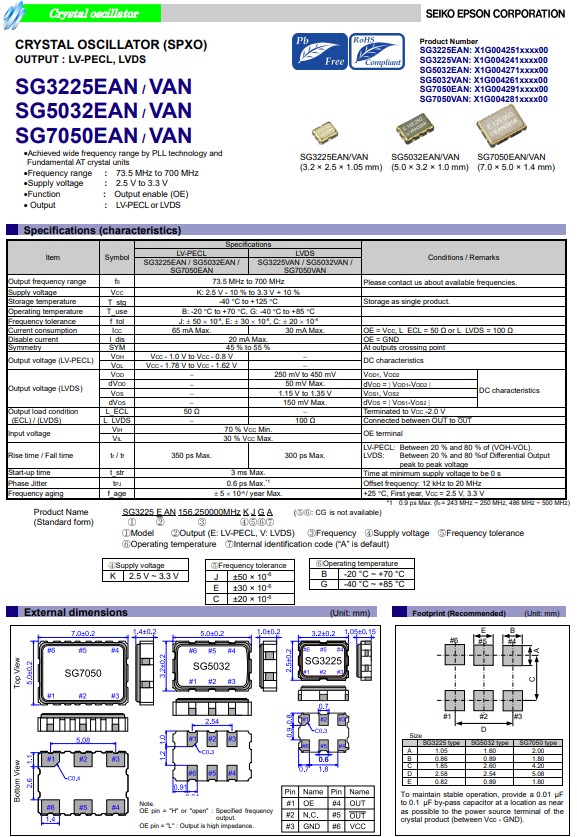

愛普生晶振SG3225EAN，是一款LV-PECL輸出差分晶振，小體積晶振尺寸3.2x2.5mm封裝晶體振蕩器，具有6個腳位貼片晶振，采用PLL技術和AT基頻晶體單元實現了可靠運行，包括低溫啟動。該器件低功耗（最高30mA），具有出色的集成相位抖動性能，遠低于0.6psRMS（12kHz至20MHz），在2.5V至3.3V之間的單電源供電，耐高溫儲存溫度可達-40℃~+125℃范圍，工作溫度范圍-40℃~85℃.低老化的特點±5x10-6/year Max.差分晶振在產品中使用具有高可靠性.差分晶振的精度值（PPM）可精確到±10PM,±20PM,±30PM,±50PM等.
愛普生SG3225EAN晶振是GPS定位器專用晶振,X1G004251001200,差分晶振

產品編碼	型號	頻率	尺寸	差分晶振	電源電壓
X1G004251000100	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251000200	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251000900	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251001200	SG3225EAN	75.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251001500	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251002000	SG3225EAN	700.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251002100	SG3225EAN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251002400	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251002600	SG3225EAN	400.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251002800	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251003200	SG3225EAN	150.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251003400	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251003500	SG3225EAN	312.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251006200	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251010000	SG3225EAN	114.285000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V

X1G004251012100	SG3225EAN	161.132812MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012200	SG3225EAN	155.520000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012300	SG3225EAN	133.330000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012400	SG3225EAN	322.562500MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012500	SG3225EAN	133.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012600	SG3225EAN	322.265625MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012700	SG3225EAN	425.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251012800	SG3225EAN	156.253906MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251013100	SG3225EAN	360.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251013200	SG3225EAN	644.531200MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251013800	SG3225EAN	644.531250MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251013900	SG3225EAN	121.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V
X1G004251014000	SG3225EAN	650.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V

愛普生SG3225EAN晶振是GPS定位器專用晶振,X1G004251001200,差分晶振
差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款石英晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，具有低電平,低抖動，低功耗等特性。
