石英晶體諧振器，簡稱石英晶體或晶振，是利用石英晶體（又稱水晶）的壓電效應，用來產生高精度振蕩頻率的一種電子元件，屬于被動元件。該元件主要由石英晶片、基座、外殼、銀膠、銀等成分組成。

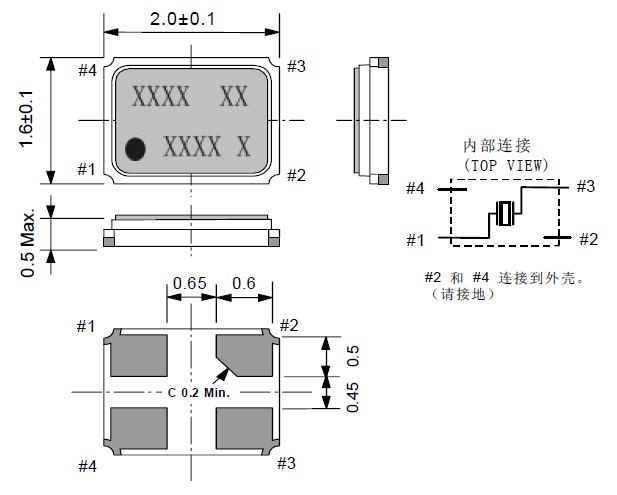

愛普生晶振FA-128是一款超小型尺寸2.0x1.6mm石英晶體諧振器，無源晶振，四腳貼片晶振，頻率范圍:16MHz至54MHz，具有超小型，輕薄型，穩定性好，耐熱及耐環境特點，該款FA-128小體積晶振，可以在-40℃至+85℃(+105℃)的溫度內穩定工作，被廣泛應用于小型便捷式通信設備、攜帶設備，智能手機、平板電腦、數碼相機、智能家居，平板電腦、計量儀表、汽車電子、工業控制系統等。
FA-128超小型晶振Q22FA1280014800特別適用于智能家居應用,Q22FA1280016800,石英晶體諧振器

產品編碼	貼片晶振	型號	頻率	負載電容	精度	頻率公差	工作溫度
Q22FA1280014800	2x1.6x0.5mm	FA-128	26.000000MHz	8pF	+/-10ppm	+/-12ppm	-30to+85°C
Q22FA1280014900	2x1.6x0.5mm	FA-128	27.000000MHz	8pF	+/-10ppm	+/-18ppm	-40to+85°C
Q22FA1280015000	2x1.6x0.5mm	FA-128	48.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280015200	2x1.6x0.5mm	FA-128	40.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280015600	2x1.6x0.5mm	FA-128	25.000000MHz	6pF	+/-30ppm	+/-30ppm	-30to+85°C
Q22FA1280015800	2x1.6x0.5mm	FA-128	27.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280015900	2x1.6x0.5mm	FA-128	27.000000MHz	12pF	+/-27ppm	+/-50ppm	-20to+70°C
Q22FA1280016000	2x1.6x0.5mm	FA-128	25.000000MHz	7pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280016600	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280016800	2x1.6x0.5mm	FA-128	24.000000MHz	12.5pF	+/-10ppm	+/-30ppm	-20to+75°C
Q22FA1280016900	2x1.6x0.5mm	FA-128	24.000000MHz	7pF	+/-10ppm	+/-30ppm	-20to+75°C
Q22FA1280017000	2x1.6x0.5mm	FA-128	26.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280017400	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-15ppm	+/-20ppm	-30to+85°C
Q22FA1280018200	2x1.6x0.5mm	FA-128	27.000000MHz	12pF	+/-30ppm	+/-50ppm	-20to+75°C
Q22FA1280018300	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280018400	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-30ppm	+/-30ppm	-30to+85°C
Q22FA1280018600	2x1.6x0.5mm	FA-128	25.000000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA1280018700	2x1.6x0.5mm	FA-128	48.000000MHz	16pF	+/-30ppm	+/-20ppm	-40to+85°C
Q22FA1280019100	2x1.6x0.5mm	FA-128	32.000000MHz	8pF	+/-10ppm	+/-10ppm	-30to+85°C
Q22FA1280019700	2x1.6x0.5mm	FA-128	32.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280020100	2x1.6x0.5mm	FA-128	24.000000MHz	18pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280020200	2x1.6x0.5mm	FA-128	32.000000MHz	6.7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280021300	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280021400	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280021500	2x1.6x0.5mm	FA-128	25.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280021800	2x1.6x0.5mm	FA-128	30.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280021900	2x1.6x0.5mm	FA-128	30.000000MHz	6pF	+/-30ppm	+/-40ppm	-30to+85°C
Q22FA1280022200	2x1.6x0.5mm	FA-128	20.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280022500	2x1.6x0.5mm	FA-128	25.000000MHz	9pF	+/-30ppm	+/-30ppm	-30to+85°C
Q22FA1280022600	2x1.6x0.5mm	FA-128	26.000000MHz	8pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280022700	2x1.6x0.5mm	FA-128	37.400000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280022900	2x1.6x0.5mm	FA-128	25.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280023000	2x1.6x0.5mm	FA-128	26.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280023200	2x1.6x0.5mm	FA-128	20.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280023300	2x1.6x0.5mm	FA-128	27.120000MHz	6pF	+/-30ppm	+/-30ppm	-30to+85°C
Q22FA1280023400	2x1.6x0.5mm	FA-128	16.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280023600	2x1.6x0.5mm	FA-128	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA1280023800	2x1.6x0.5mm	FA-128	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280024100	2x1.6x0.5mm	FA-128	30.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280024200	2x1.6x0.5mm	FA-128	27.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C

Q22FA1280024400	2x1.6x0.5mm	FA-128	24.000000MHz	10pF	+/-15ppm	+/-20ppm	-40to+85°C
Q22FA1280025000	2x1.6x0.5mm	FA-128	24.000000MHz	9pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA1280025200	2x1.6x0.5mm	FA-128	27.000000MHz	12pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280026100	2x1.6x0.5mm	FA-128	20.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280026500	2x1.6x0.5mm	FA-128	25.000000MHz	18pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280026700	2x1.6x0.5mm	FA-128	30.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280027100	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280028400	2x1.6x0.5mm	FA-128	48.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280029800	2x1.6x0.5mm	FA-128	25.000000MHz	20pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280030000	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-10ppm	+/-30ppm	-40to+85°C
Q22FA1280030100	2x1.6x0.5mm	FA-128	48.000000MHz	12pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280030200	2x1.6x0.5mm	FA-128	48.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C
Q22FA1280030300	2x1.6x0.5mm	FA-128	36.000000MHz	8pF	+/-10ppm	+/-12ppm	-30to+85°C
Q22FA1280030400	2x1.6x0.5mm	FA-128	24.000000MHz	8pF	+/-10ppm	+/-12ppm	-30to+85°C
Q22FA1280030500	2x1.6x0.5mm	FA-128	32.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280030800	2x1.6x0.5mm	FA-128	16.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280031100	2x1.6x0.5mm	FA-128	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280031400	2x1.6x0.5mm	FA-128	24.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280031500	2x1.6x0.5mm	FA-128	27.120000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280031800	2x1.6x0.5mm	FA-128	40.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280032100	2x1.6x0.5mm	FA-128	48.000000MHz	7pF	+/-30ppm	+/-30ppm	-20to+75°C
Q22FA1280032600	2x1.6x0.5mm	FA-128	24.000000MHz	12pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA1280033200	2x1.6x0.5mm	FA-128	40.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA1280033400	2x1.6x0.5mm	FA-128	32.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280033500	2x1.6x0.5mm	FA-128	20.000000MHz	10pF	+/-10ppm	+/-30ppm	-40to+85°C
Q22FA1280033600	2x1.6x0.5mm	FA-128	25.000000MHz	7pF	+/-10ppm	+/-30ppm	-40to+85°C
Q22FA1280033700	2x1.6x0.5mm	FA-128	27.000000MHz	12pF	+/-10ppm	+/-30ppm	-40to+85°C
Q22FA1280034100	2x1.6x0.5mm	FA-128	16.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280034500	2x1.6x0.5mm	FA-128	50.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280034600	2x1.6x0.5mm	FA-128	20.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280034800	2x1.6x0.5mm	FA-128	16.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA1280035000	2x1.6x0.5mm	FA-128	26.000000MHz	8pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA1280035200	2x1.6x0.5mm	FA-128	26.000000MHz	7pF	+/-10ppm	+/-20ppm	-40to+85°C
Q22FA1280035700	2x1.6x0.5mm	FA-128	24.576000MHz	12pF	+/-50ppm	+/-50ppm	-40to+85°C
Q22FA1280036400	2x1.6x0.5mm	FA-128	32.000000MHz	8pF	+/-20ppm	+/-20ppm	-30to+85°C
Q22FA1280036600	2x1.6x0.5mm	FA-128	16.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q22FA1280036700	2x1.6x0.5mm	FA-128	32.253000MHz	8pF	+/-30ppm	+/-50ppm	-40to+85°C

FA-128超小型晶振Q22FA1280014800特別適用于智能家居應用,Q22FA1280016800,石英晶體諧振器
日本EPSON擁有先進的生產設備,追求“省、小、精”的獨特技術,研發制造符合業界需求的石英晶振,貼片晶振,有源晶體振蕩器等產品.愛普生所生產的石英貼片晶振產品,

愛普生品牌的產業遍布全球,即使除了晶振行業,還有愛普生電容,愛普生打印機,愛普生時鐘模塊等產品被大家所熟知,多年來因其高穩定的產品質量成為大家一致認可的品牌.
