科技發展對差分晶振的使用日益增多,各大晶振品牌紛紛推出差分晶體振蕩器,比如我們所熟悉的KDS晶振,京瓷晶振,NDK晶振,愛普生晶振,IDT晶振等知名品牌.我們都知道差分晶振除了有普通晶振有的功能外,最大的不同就是輸出的方式是差分信號.

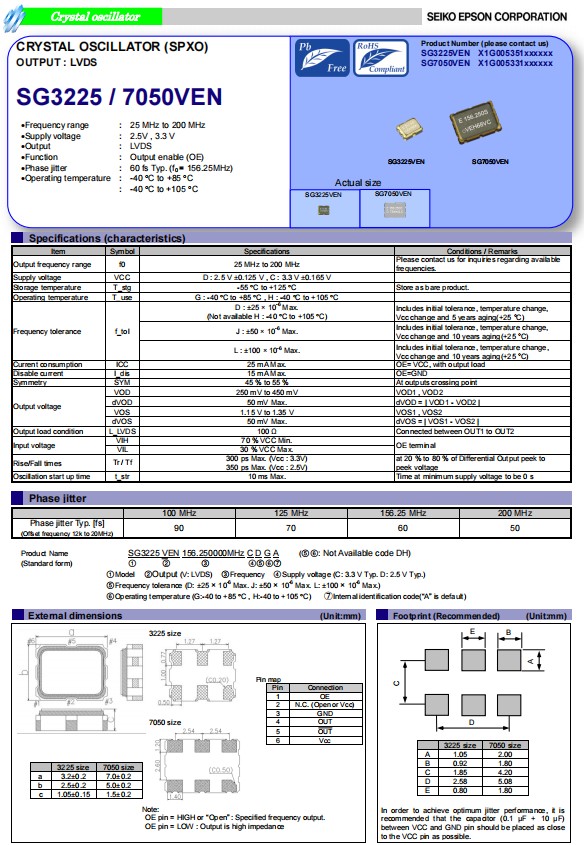

日本進口愛普生晶振SG3225VEN，是一款LVDS差分晶振，小體積晶振尺寸3.2x2.5mm六腳貼片晶振，電源電壓2.5V,3.3V，寬頻率范圍25MHz至200MHz任意一頻點具有低電源電壓，滿足產品低消耗電流特點，該產品具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能，低相位噪聲，低電平等特點，能夠輕易識別網絡信號以及精確的處理雙極信號。SG3225VEN貼片晶振被廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表，SAS，光纖通信，10G以太網及各種頻率控制設備上。
LVDS差分晶振X1G005351000200應用于數字通信系統,X1G005351001100,3225mm貼片晶振

產品編碼	型號	頻率	石英晶振	輸出波	電源電壓	工作溫度
X1G005521000100	SG3225VEN	212.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000200	SG3225VEN	312.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000500	SG3225VEN	322.265600MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000900	SG3225VEN	333.330000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521001100	SG3225VEN	245.760000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521100700	SG3225VEN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351000100	SG3225VEN	72.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351000200	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351000300	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351000700	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351000800	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351001100	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351001200	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351001900	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351002000	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351002100	SG3225VEN	148.351640MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351002200	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351002300	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351002400	SG3225VEN	74.250000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351002600	SG3225VEN	30.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351002700	SG3225VEN	36.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351002800	SG3225VEN	42.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351002900	SG3225VEN	48.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351003000	SG3225VEN	54.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351003100	SG3225VEN	60.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351003200	SG3225VEN	70.656000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351003300	SG3225VEN	150.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351003400	SG3225VEN	182.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351003600	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351003700	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004100	SG3225VEN	135.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004200	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004400	SG3225VEN	25.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004500	SG3225VEN	27.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C

X1G005351004600	SG3225VEN	160.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004700	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004800	SG3225VEN	156.253906MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351004900	SG3225VEN	48.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351005100	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351005200	SG3225VEN	150.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351005400	SG3225VEN	130.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351005500	SG3225VEN	70.656000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351005600	SG3225VEN	25.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351006100	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351006200	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005351006500	SG3225VEN	135.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351006900	SG3225VEN	161.132812MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007100	SG3225VEN	60.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007200	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007300	SG3225VEN	148.351648MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007600	SG3225VEN	26.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007700	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007800	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007900	SG3225VEN	155.520000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351100200	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100400	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100600	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100700	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351100800	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100900	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101000	SG3225VEN	25.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101100	SG3225VEN	72.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101200	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101300	SG3225VEN	133.333000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101400	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101500	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101600	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101800	SG3225VEN	156.242187MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101900	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351102000	SG3225VEN	148.351648MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351102100	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C

LVDS差分晶振X1G005351000200應用于數字通信系統,X1G005351001100,3225mm貼片晶振
常用的差分晶振輸出均屬于方波，輸出功率比較大，驅動能力較強，但諧波分量非常多。這兩種輸出模式是差分晶振的輸出邏輯，兩者的相位剛好相反，因此它們能夠組成更高性能的系統，同時還能消除共模噪聲。差分輸出（例如PECL，LVDS，HCSL) 可以滿足高速數據傳輸，應用于高速計算機，數字通信系統，雷達，測量?jī)x器，頻率合成器等。
